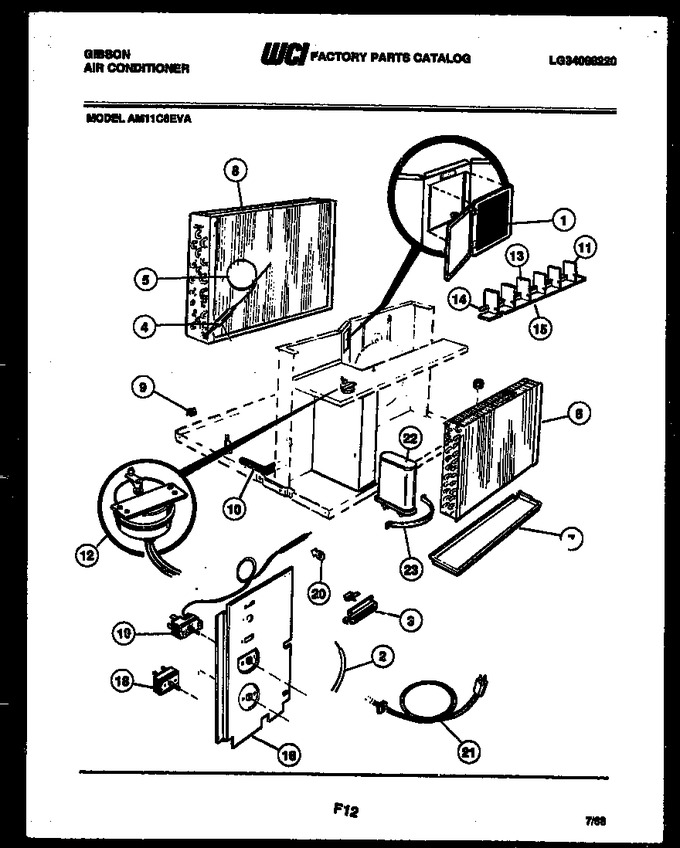

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3012455		Door-vent		Appelez-nous	-
2	3002132		Cable - Vent Door		Appelez-nous	-
3	3001848		Bracket-actuator		Appelez-nous	-
4	3017512		Strainer		Appelez-nous	-
5	WA112109		Tube-capillary (cut To 35``)		Appelez-nous	-
6	3002273		Evaporator		Appelez-nous	-
7	3002332		Tray-evaporator		Appelez-nous	-
8	3002247		Condenser		Appelez-nous	-
9	G521772		Clip-condenser		Appelez-nous	-
10	3001759		Tube-drain		Appelez-nous	-
11	G158417		Louver & Link Assembly		Appelez-nous	-
12	3017538		Motor-louver Assembly		Appelez-nous	-
13	3002431		Louver		Appelez-nous	-
14	3001835		Link-drive		Appelez-nous	-
15	3001834		Link-connecting		Appelez-nous	-
16	3018544		Panel-control		Appelez-nous	-
17	3015318		Switch-slide		Appelez-nous	-
18	3017344		Switch - Selector				$ 166.42
19	3002079		Control		Appelez-nous	-
20	WA310003		Clip-retainer		Appelez-nous	-
21	G521779		Cord-service		Appelez-nous	-
22	3012047		Capacitor-dual		Appelez-nous	-
23	3001770		Strap-capacitor		Appelez-nous	-
17A	3001773		Spacer-slide Switch (non-illustrated)		Appelez-nous	-
19A	3002600		Sleeve-control Bulb (non-illustrated)		Appelez-nous	-
3A	3002127		Arm-actuator (non-illustrated)		Appelez-nous	-
9A	3014757		Grommet-base Drain (non-illustrated)		Appelez-nous	-
