02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

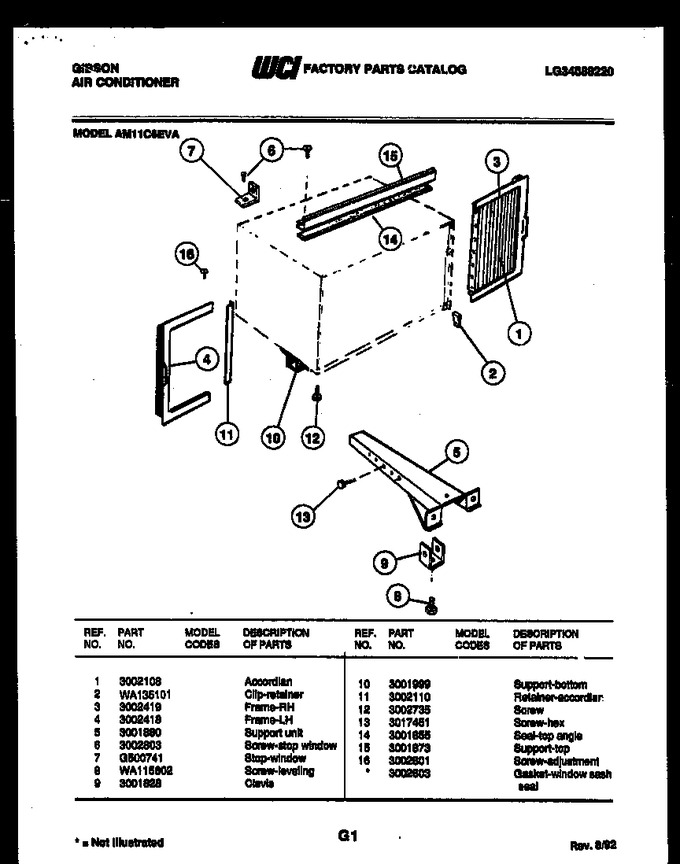

| 1 | 3002108 | Accordian |
|
- | |||||
| 2 | WA135101 | Clip-retainer |
|
- | |||||
| 3 | 3002419 | Frame Rh |
|
- | |||||
| 4 | 3002418 | Frame Lh |
|
- | |||||
| 5 | 3001880 | Support Unit |
|
- | |||||
| 6 | 3002803 | Screw-stop Window |
|
- | |||||
| 7 | G500741 | Stop-window |
|
- | |||||
| 8 | WA115602 | Screw-leveling |
|
- | |||||
| 9 | 3001828 | Clevis |
|
- | |||||
| 10 | 3001999 | Support-bottom |
|
- | |||||
| 11 | 3002110 | Retainer-accordian |
|
- | |||||
| 12 | 3002735 | Screw |
|
- | |||||
| 13 | 3017451 | Screw-hex |
|
- | |||||
| 14 | 3001855 | Seal-top Angle |
|
- | |||||
| 15 | 3001873 | Support-top |
|
- | |||||
| 16 | 3002801 | Screw - Adjustment |
|
- | |||||
| *82763 | 3002603 | Gasket-window Sash Seal |
|
- |
