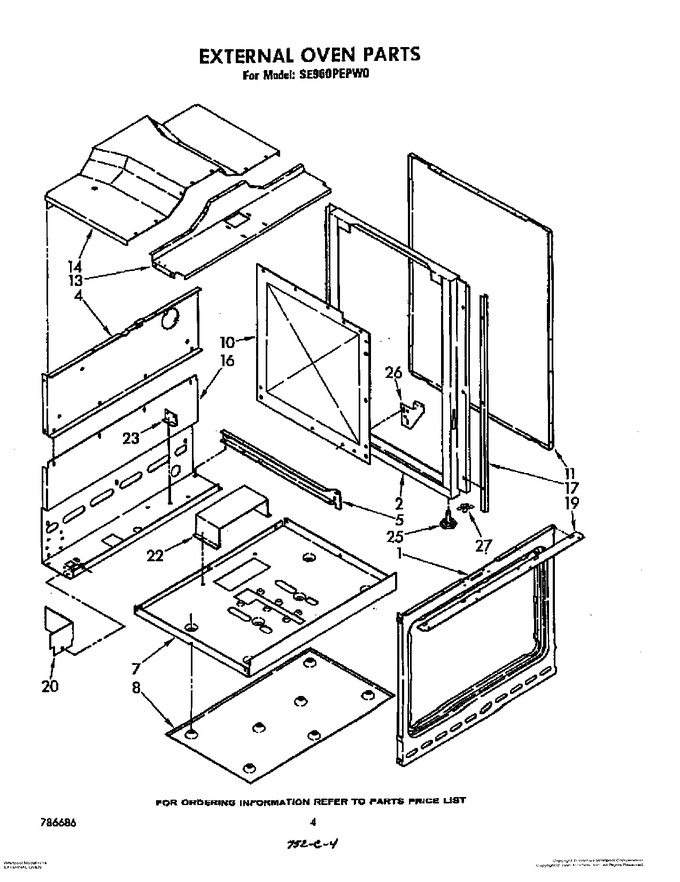

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786357		Frame, Front		Appelez-nous	-
2	786358		Frame, Side (right Side)		Appelez-nous	-
2	786359		Frame, Side (left Side (see Page 9 For Two Track System))		Appelez-nous	-
4	786360		Rear Panel, Upper		Appelez-nous	-
5	786361		Track, Storage Draw (right Side)		Appelez-nous	-
5	786362		Track, Storage Drawer (left Side (see Page 9 For Two Track System))		Appelez-nous	-
7	786363		Retainer, Bottom Insulation		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (9)   (Replaces: 786745)			Immediately	$ 9.65
8	786364		Heat Shield, Storage Drawer		Appelez-nous	-
10	786365		Retainer, Insulation (2)		Appelez-nous	-
11	786367		Panel, End (2) (platinum)		Appelez-nous	-
11	786370		Panel, End (2) (white)		Appelez-nous	-
11	786368		Panel, End (2) (toast)		Appelez-nous	-
11	786369		Panel, End (2) (almond)		Appelez-nous	-
13	786371		Retainer, Top Front Insulation		Appelez-nous	-
14	786372		Retainer, Top Back Insulation		Appelez-nous	-
16	WP486754		Screw, 6-32 X 3/8   (Replaces: 786749)				$ 6.75
16	786750		Bushing, Snap		Appelez-nous	-
16	786747		Rear Panel, Lower		Appelez-nous	-
16	786748		Nut, 6-32		Appelez-nous	-
16	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
16	WP488130		Nut (2)   (Replaces: 786272)				$ 6.27
17	786382		Trim, Side Panel (2)		Appelez-nous	-
19	786384		Frame, Filler Front		Appelez-nous	-
20	786385		Plate, Cover		Appelez-nous	-
22	786388		Cover, Burner		Appelez-nous	-
23	786389		Bracket, Gas Valve (2)		Appelez-nous	-
25	786602		Leg, Leveling (4)		Appelez-nous	-
26	786699		Bracket, Door Switch		Appelez-nous	-
27	4157527		Nut (4)		Appelez-nous	-
