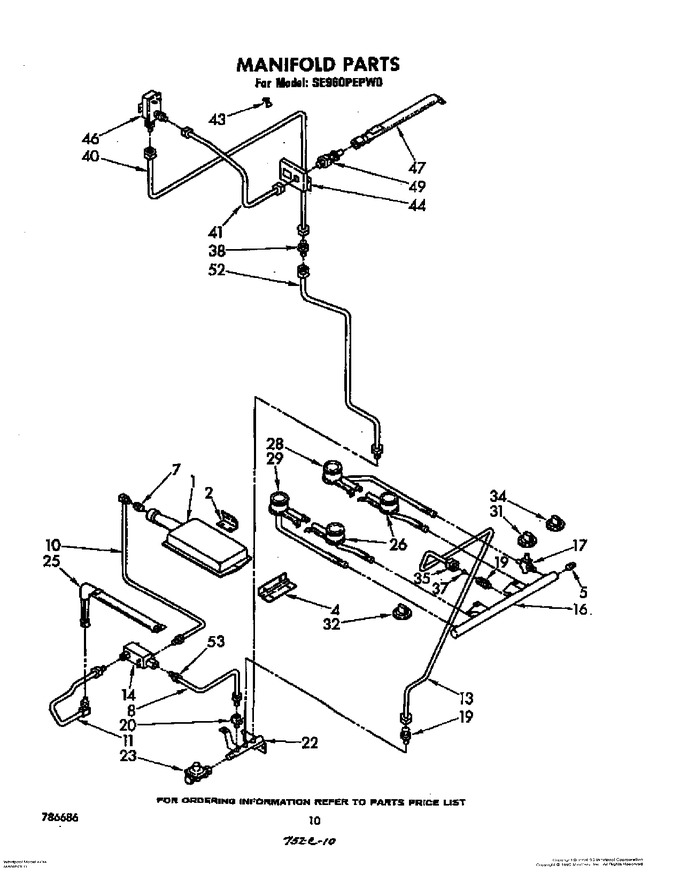

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 786307 | Burner, Ultra Ray Broiler |
|
- | |||||
| 2 | 786543 | Bracket, Ignitor |
|
- | |||||
| 4 | 786544 | Bracket, Burner Mounting |
|
- | |||||
| 5 | 786665 | Pipe Plug, 1/8 Npt |
|
- | |||||
| 7 | 786308 | Spud, Orifice (natural Gas No. 50) |
|
- | |||||
| 7 | 786309 | Spud, Orifice (lp Gas No. 58) |
|
- | |||||
| 8 | 786547 | Tubing (inlet To Gas Valve) |
|
- | |||||
| 10 | 786548 | Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner) |
|
- | |||||
| 11 | 786549 | Hood & Tubing Assembly (gas Valve To Lower Oven Burner) |
|
- | |||||
| 13 | 786550 | Tubing (inlet To Manifold) |
|
- | |||||
| 14 | 786310 | Valve, Dual Gas |
|
- | |||||
| 16 | 786554 | Manifold |
|
- | |||||
| 17 | 786311 | Valve, Top Burner (tri-set) |
|
- | |||||
| 19 | 786556 | Fitting |
|
- | |||||
| 20 | 786312 | Valve, Shut-off |
|
- | |||||
| 22 | 786557 | Inlet |
|
- | |||||
| 23 | 786313 | Regulator, Pressure |
|
- | |||||
| 25 | 786314 | Oven Burner, Lower |
|
- | |||||
| 26 | 786315 | Top Burner, Front (2) |
|
- | |||||
| 28 | 786316 | Top Bruner, R.r. |
|
- | |||||
| 29 | 786317 | Top Burner, L.r. |
|
- | |||||
| 31 | 786559 | Knob, Top Burner (4) |
|
- | |||||
| 32 | 786560 | Knob, Oven Control |
|
- | |||||
| 34 | 786562 | Knob, Selector |
|
- | |||||
| 35 | 786565 | Nut, Compression 3/8 |
|
- | |||||
| 37 | 786566 | Sleeve, Compressor 3/8 |
|
- | |||||
| 38 | 786551 | Union |
|
- | |||||
| 40 | 786552 | Tubing (union To Gas Valve) |
|
- | |||||
| 41 | 786553 | Tubing (gas Valve Upper Orifice) |
|
- | |||||
| 43 | 786558 | Spring, Thermostat Bulb |
|
- | |||||
| 44 | 786563 | Bracket, Mounting |
|
- | |||||
| 46 | 786564 | Valve, Upper |
|
- | |||||
| 47 | 786567 | Burner, Upper |
|
- | |||||
| 49 | 786568 | Orifice, Universal |
|
- | |||||
| 52 | 786546 | Tubing (inlet To Upper-oven Union) |
|
- | |||||
| 53 | 4157867 | Nut |
|
