SELECT A DIAGRAM

02 - Internal Oven


03 - External Oven


04 - Cooktop

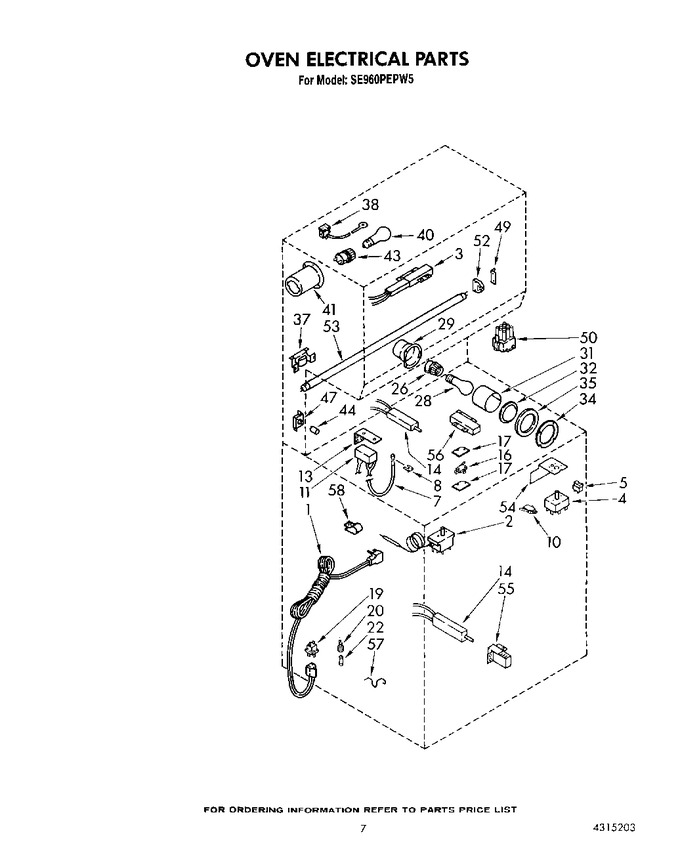

05 - Oven Electrical


06 - Oven Door And Drawer


07 - Manifold


08 - Upper Oven


09 - Upper Control Panel, Lit/optional


10 - Upper Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	4179069		Thermostat, Oven		Appelez-nous	-
3	786324		Ignitor   (Replaces: 4315139)			Immediately	$ 60.68
4	4179076		Switch, Selector		Appelez-nous	-
5	786325		Switch, Fluorescent Light (2)		Appelez-nous	-
7	786320		Ignitor, Top (r.h.)		Appelez-nous	-
7	786321		Ignitor, Top (l.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode   (Replaces: 786580)				$ 6.85
10	786322		Switch, Top Burner Actuator		Appelez-nous	-
11	786323		Module, Spark		Appelez-nous	-
13	786581		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor (3)			Immediately	$ 60.68
16	786669		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
20	786584		Holder, Fuse		Appelez-nous	-
22	786585		Fuse		Appelez-nous	-
26	786653		Socket, Oven Lamp		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	786743		Housing, Oven Light		Appelez-nous	-
31	786573		Retainer, Insulation		Appelez-nous	-
32	786574		Lens, Oven Light		Appelez-nous	-
34	786575		Retainer, Oven Light Lens		Appelez-nous	-
35	786576		Gasket, Oven Light		Appelez-nous	-
37	786540		Ballast		Appelez-nous	-
38	786589		Outlet, Fan Motor		Appelez-nous	-
40	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
41	786590		Housing, Oven Light		Appelez-nous	-
43	786591		Socket, Oven Light		Appelez-nous	-
44	786541		Starter, Fluorescent Light		Appelez-nous	-
47	786542		Socket, Starter		Appelez-nous	-
49	786592		Support Bracket, Socket		Appelez-nous	-
50	786593		Plug, Disconnect		Appelez-nous	-
52	786536		Lampholder Fluorescent		Appelez-nous	-
53	WP95292		Lamp, Fluorescent   (Replaces: 786594)			Immediately	$ 121.45
54	786689		Insulator, Control (2)		Appelez-nous	-
55	786801		Bracket, Bake Ignitor		Appelez-nous	-
56	786802		Bracket, Broiler Ignitor		Appelez-nous	-
57	4179338		Clip, Wire		Appelez-nous	-
58	4157298		Clamp, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
