02 - Internal Oven


03 - External Oven


04 - Cooktop


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Manifold


08 - Upper Oven


09 - Upper Control Panel, Lit/optional


10 - Upper Oven Door

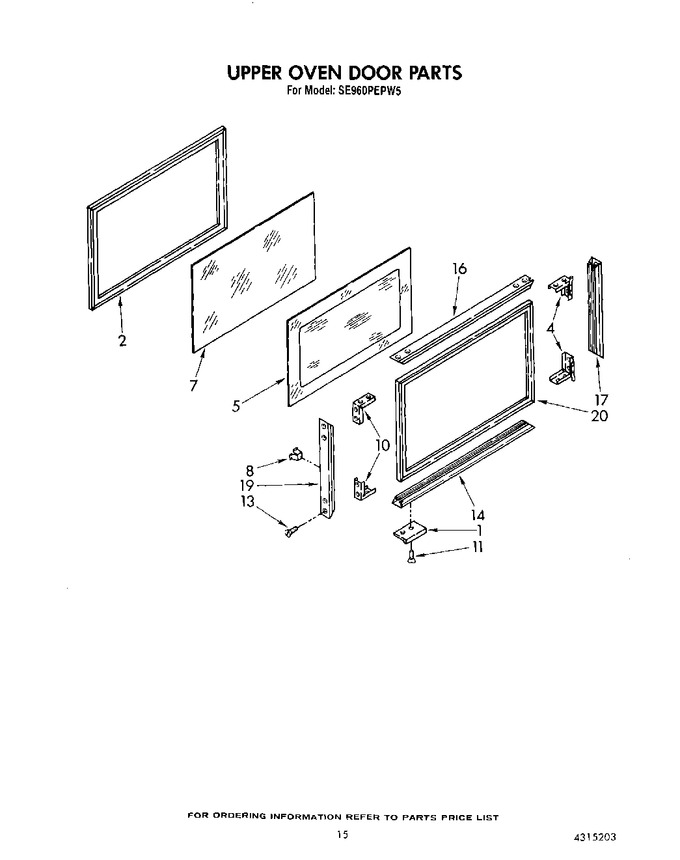

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786501		Handle, Door		Appelez-nous	-
2	786502		Gasket, Door		Appelez-nous	-
4	786504		Support, Corner (right Side, Upper)		Appelez-nous	-
4	786503		Support, Corner (right Side, Lower)		Appelez-nous	-
5	786505		Glass, Outer		Appelez-nous	-
7	786506		Glass, Inner		Appelez-nous	-
8	786507		Catch, Door		Appelez-nous	-
10	786508		Support Corner Left Side		Appelez-nous	-
11	786509		Screw, Handle		Appelez-nous	-
13	786510		Screw, Door Ass`y		Appelez-nous	-
14	786511		Frame, Lower		Appelez-nous	-
16	786512		Frame, Upper		Appelez-nous	-
17	786513		Frame, Right Side		Appelez-nous	-
19	786514		Frame, Left Side		Appelez-nous	-
20	786515		Gasket, Window (11 Ft.)		Appelez-nous	-
