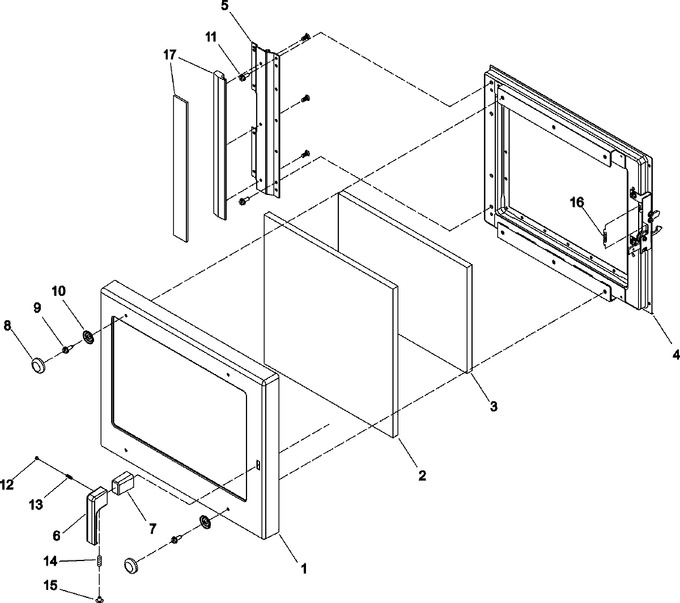

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12162511		Door,outer		Appelez-nous	-
2	59001720		Insul-door (large Sheet)		Appelez-nous	-
3	59001719		Insul-door (small Sheet)		Appelez-nous	-
4	59002021		Inner Door Assy- Ace		Appelez-nous	-
5	C8961811		Hinge-door		Appelez-nous	-
6	12490902		Door Handle		Appelez-nous	-
7	12576901		Insert,handle		Appelez-nous	-
8	59001660		Cap-screw		Appelez-nous	-
9	13042701		Screw-tc/holt		Appelez-nous	-
10	M0295502		Washer, Cap Screw		Appelez-nous	-
11	WP12990527		Screw-sm/hex   (Replaces: 12990527)			Immediately	$ 7.15
12	12360703		Plug, Button (blk)		Appelez-nous	-
13	59002036		Screw- Set/cone		Appelez-nous	-
14	13047001		Screw-set/dog		Appelez-nous	-
15	M0310305		Plug, Button (wht)		Appelez-nous	-
16	59001721		Spring-door Latch		Appelez-nous	-
17	12089001		Hinge Shield W\adhesive		Appelez-nous	-
NI	92113P01		Bit For Crow Foot Drive Screws		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
