SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Electrical Components


04 - Fuses, Blower, Heater Box,


05 - Stirrer, Ducts,


06 - Supplemental Information


07 - Wiring Information

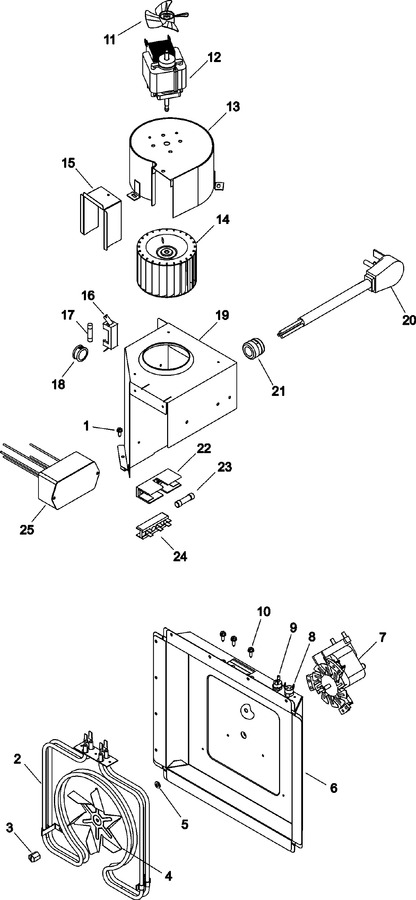

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12990526		Screw-sm/hex		Appelez-nous	-
2	12000107		Assy,heater		Appelez-nous	-
2	13041801		Screw-tc/pan		Appelez-nous	-
3	12538001		Nut,cap		Appelez-nous	-
4	12537901		Blade, Fan				$ 12.61
5	12546101		Washer		Appelez-nous	-
6	67006425		Screw, Sm			Immediately	$ 6.26
6	59001513		Heater Box		Appelez-nous	-
7	M0229616		Screw,sm		Appelez-nous	-
7	12537803		Motor,convection		Appelez-nous	-
8	67006950		Screw-tc/round		Appelez-nous	-
8	B5684123		Cutout,thermal				$ 10.05
9	31866P01		M4d69 Protector				$ 8.67
9	67006950		Screw-tc/round		Appelez-nous	-
10	12990606		Screw-sm/pan		Appelez-nous	-
11	B5706704		Fan Blade				$ 8.23
12	12992305		Screw-tf/hex		Appelez-nous	-
12	10773308		Motor- Blower		Appelez-nous	-
13	59002047		Screw-tf/hex Rohs		Appelez-nous	-
13	10797203		Scroll Weld		Appelez-nous	-
14	C3670809		Wheel, Blower				$ 33.54
15	10977801		Transition-blower		Appelez-nous	-
15	12990526		Screw-sm/hex		Appelez-nous	-
16	12136503		Block-1 Pole Fuse				$ 5.70
16	WP59002061		Screw Sm/pan   (Replaces: 59002061)				$ 6.98
17	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25
18	M0571003		Bushing-snap		Appelez-nous	-
19	12000812		Bracket,blower Weld		Appelez-nous	-
20	B5669026		Cord-power		Appelez-nous	-
21	M0370009		Relief- Strain		Appelez-nous	-
22	10091101		Fuse Holder		Appelez-nous	-
22	12990522		Screw-sm/hex		Appelez-nous	-
23	M0805202		Fuse,15 Amp		Appelez-nous	-
24	12990606		Screw-sm/pan		Appelez-nous	-
24	B5677203		Terminal Block		Appelez-nous	-
25	A4539638		Rivet-pop		Appelez-nous	-
25	12130001		Filter-line		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
