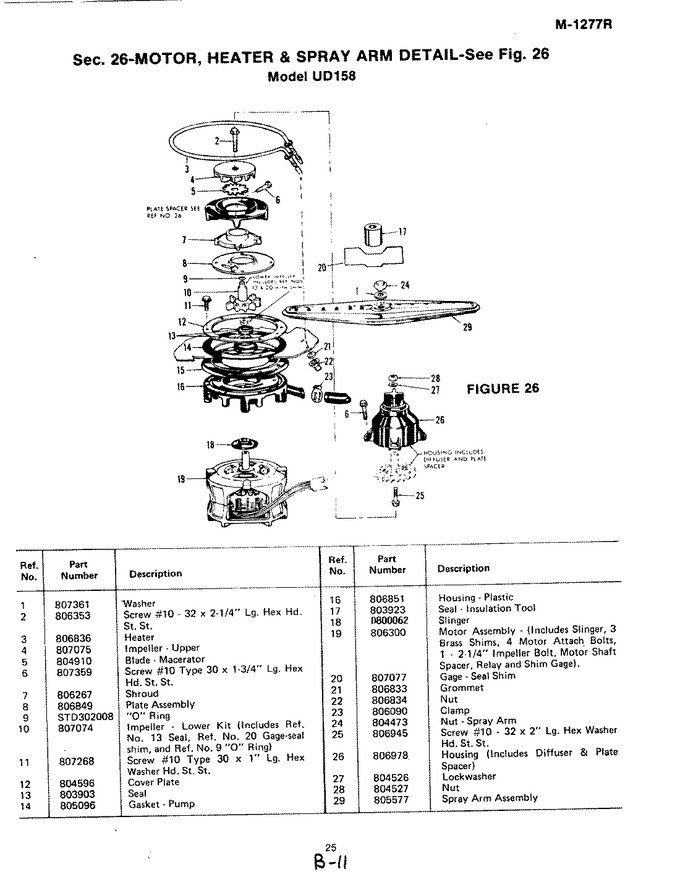

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807361 | Washer |
|
- | |||||
| 2 | 806353 | Screw |
|
- | |||||
| 3 | 806836 | Heater Kit |
|
- | |||||
| 4 | 807075 | Impeller |
|
$ 0.24 | |||||
| 5 | COMM PART | Macerator Blade (Replaces: 804910) |
|
- | |||||
| 6 | 807359 | Screw |
|
- | |||||
| 7 | 806267 | Shroud |
|
- | |||||
| 8 | 806849 | Plate |
|
- | |||||
| 9 | 5300808042 | Sub 808042 (Replaces: 807074) |
|
- | |||||
| 10 | 807268 | Screw |
|
- | |||||
| 11 | 804596 | Cover Plate |
|
- | |||||
| 12 | DW53 | Panel (Replaces: 806906) |
|
$ 44.41 | |||||
| 13 | 805096 | Pump Gasket |
|
- | |||||
| 14 | 806851 | Pump Housing |
|
- | |||||
| 15 | 803923 | Seal Tool |
|
- | |||||
| 16 | D800062 | Slinger |
|
- | |||||
| 17 | 806300 | Motor |
|
- | |||||
| 18 | 807077 | Shim Gauge |
|
- | |||||
| 19 | 5300806833 | Grommet (Replaces: 806833) |
|
$ 5.34 | |||||
| 20 | 154106202 | Nut (Replaces: 806834) |
|
Immediately | $ 18.32 | ||||
| 21 | 806090 | Clamp |
|
- | |||||
| 22 | 804473 | Nut |
|
- | |||||
| 23 | 806945 | Screw |
|
- | |||||
| 24 | 806978 | Pumphousing Kit |
|
- | |||||
| 25 | COMM PART | Lockwasher (Replaces: 804526) |
|
- | |||||
| 26 | 316205500 | Nut (Replaces: 804527) |
|
$ 11.34 | |||||
| 27 | 805577 | Lwr Spray Arm |
|
- |
