SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Stirrer, Ducts,


04 - Fuses, Blower, Heater Box,


05 - Electrical Components


06 - Supplemental Information


07 - Wiring Information

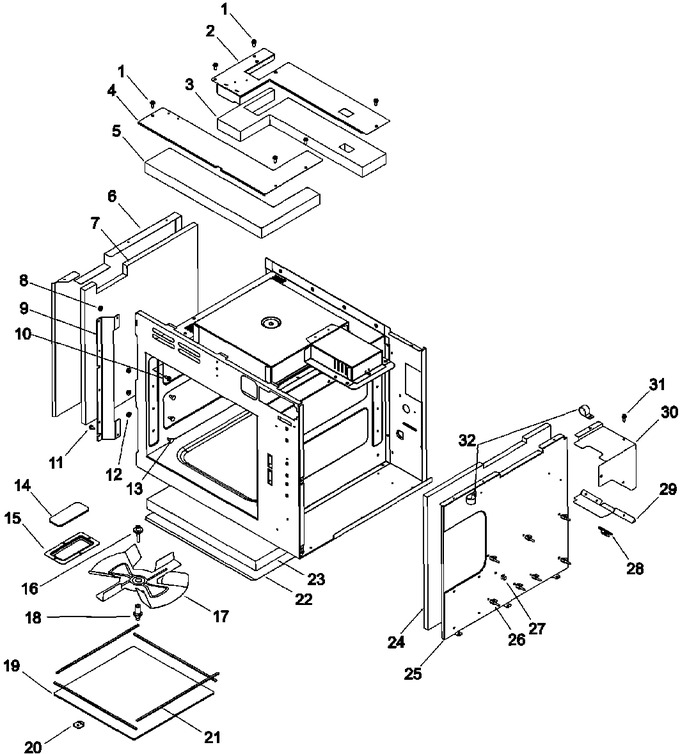

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
002	10977401		Retainer-top Back Insul		Appelez-nous	-
003	12000701		Insul- Top Back Retainer		Appelez-nous	-
004	10978002		Retainer-top Front Insul		Appelez-nous	-
005	12000702		Insul- Top Front Retainer		Appelez-nous	-
006	10977301		Retainer-side Insul Lt		Appelez-nous	-
007	12000501		Insul- Side Retainer Lt		Appelez-nous	-
008	M0282005		Nut K				$ 7.07
009	12189004		Brkt, Hinge Supp		Appelez-nous	-
010	M0213802		Screw		Appelez-nous	-
011	59001208		Screw, Hex Head		Appelez-nous	-
012	WP488130		Nut   (Replaces: M0282007)				$ 6.27
013	12030101		Bolt-shldr		Appelez-nous	-
014	12047501		Glass-oven Light		Appelez-nous	-
015	10978201		Retainer, Oven Light Glass		Appelez-nous	-
015	M0213802		Screw		Appelez-nous	-
016	12004401		Shaft, Stirrer		Appelez-nous	-
017	10825904Q		Blade, Stirrer		Appelez-nous	-
018	R0130737		Kit-insert & Blade Stirrer				$ 78.41
019	R0150115		Assy, Stirrer Cover				$ 123.32
020	12188901		Retainer-tray		Appelez-nous	-
020	M0213802		Screw		Appelez-nous	-
021	12019002		Gasket				$ 7.61
022	10977501		Retainer-bottom Insul		Appelez-nous	-
022	WP489128		Screw   (Replaces: M0220417)				$ 9.79
023	12000703		Insul-bottom Retainer		Appelez-nous	-
024	12000401		Insul- Side Retainer Rt		Appelez-nous	-
025	59001652		Retainer-side Insul Rt		Appelez-nous	-
025	WP489128		Screw   (Replaces: M0220417)				$ 9.79
026	5043-W		No.6 F X 1/4`` Screw (25)		Appelez-nous	-
026	M0590602		Support P-c Bd A		Appelez-nous	-
027	M0585507		Support		Appelez-nous	-
028	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
029	10978601		Duct-blower/mag		Appelez-nous	-
029	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
030	10978702		Cover-mag Inlet		Appelez-nous	-
031	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
032	M0102305		Clamp, Tube		Appelez-nous	-
032	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
