SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Stirrer, Ducts,


04 - Fuses, Blower, Heater Box,


05 - Electrical Components


06 - Supplemental Information


07 - Wiring Information

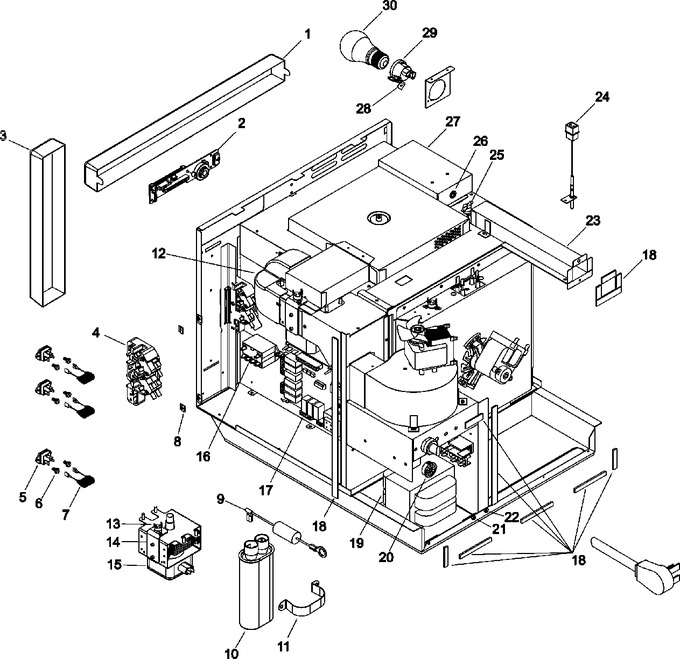

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	59001208		Screw, Hex Head		Appelez-nous	-
001	59001673		Touch Panel-top		Appelez-nous	-
001	R0000280		Assy, Touch Panel-top		Appelez-nous	-
002	12502401		Board,display Xxx		Appelez-nous	-
002	M0234114		Screw		Appelez-nous	-
003	59001208		Screw, Hex Head		Appelez-nous	-
003	59001860		Touch Panel(side)		Appelez-nous	-
003	R0000279		Assy, Touch Panel-side		Appelez-nous	-
004	12002647		Switch, Interlock Kit		Appelez-nous	-
004	M0216517		Screw		Appelez-nous	-
005	12QBP0508		Kit, Triac Assy   (Replaces: R0157373)				$ 27.14
006	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
007	10172901Q		Snubber Assembly		Appelez-nous	-
008	M0287001		Nut-speed		Appelez-nous	-
009	59001208		Screw, Hex Head		Appelez-nous	-
009	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
010	12548813		Capacitor-1.30		Appelez-nous	-
011	59001208		Screw, Hex Head		Appelez-nous	-
011	A4055406		Strap, Capacitor		Appelez-nous	-
012	12018101		Duct-mag/wvgd		Appelez-nous	-
012	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
013	B5684119		Cutout-thermal		Appelez-nous	-
013	M0232012		Screw		Appelez-nous	-
014	10999501		Brkt-tco Mtg		Appelez-nous	-
014	M0229916		Screw T.c		Appelez-nous	-
015	59001484		Magnetron-t		Appelez-nous	-
016	12492202		Relay		Appelez-nous	-
016	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
017	12559101Q		Board,hv Amana Program		Appelez-nous	-
018	A3030301		Gasket (inch)		Appelez-nous	-
019	10788609		Transformer-hv 230v 50 Hz		Appelez-nous	-
020	M0571001		Snap Bushing		Appelez-nous	-
021	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
022	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
023	12002901		Flue Duct Weld		Appelez-nous	-
023	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
024	12000201		Sensor-temp		Appelez-nous	-
024	M0232002		Screw, T F		Appelez-nous	-
024	M0282005		Nut K				$ 7.07
025	B5684102		Thermal Protector		Appelez-nous	-
026	A3293501		Bushing		Appelez-nous	-
027	12630501		Cover,lamp		Appelez-nous	-
027	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
028	B8376701		Bracket, Light		Appelez-nous	-
028	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
029	B8376801		Socket, Light		Appelez-nous	-
029	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
030	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)			Immediately	$ 10.58

    View Diagram in Separate Window       Print Part List
