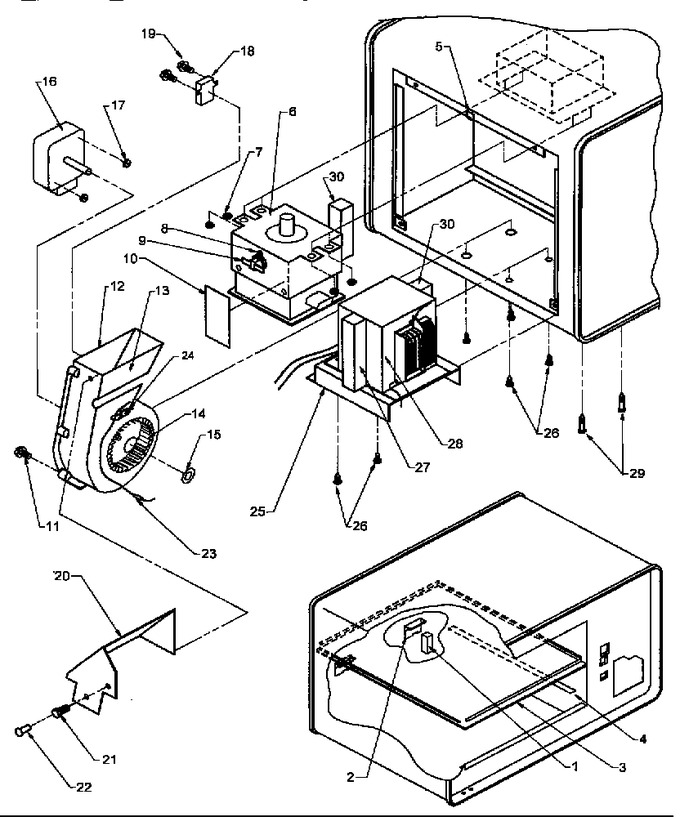

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3010003001		Support-tray		Appelez-nous	-
2	4180025801		Rework Shelf Support (sr)		Appelez-nous	-
3	M50D39		Shelf W/sealant Kit		Appelez-nous	-
4	2570002301		11.75 X .5 Shim		Appelez-nous	-
5	39126P01		Cable Clip		Appelez-nous	-
6	M57D43		Magnetron Filter Kit		Appelez-nous	-
7	5014-J		Ia 5mm Flange Whiz-lk Nut (25)		Appelez-nous	-
8	M0251717		Screw		Appelez-nous	-
9	1751802501		Protector,thermal 180c 25 Amp		Appelez-nous	-
10	5041-CC		Tape Alum		Appelez-nous	-
11	5145-W		No.8 Hi-lo X 3/8`` Screw		Appelez-nous	-
12	M20D372		Blower Bracket		Appelez-nous	-
13	42553P01		Blwr Hsg M65d293		Appelez-nous	-
14	45146P01		Wheel Blower M35d37		Appelez-nous	-
15	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
16	2010001001		Kit, Blower Motor		Appelez-nous	-
17	5010-LL		Nut K		Appelez-nous	-
20	41235P01		Cvr Blwr		Appelez-nous	-
21	5027-ZZ		Screw		Appelez-nous	-
22	5039-T		.187 Dia Push Rivet		Appelez-nous	-
23	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
24	5140-FF		Tie-elect.		Appelez-nous	-
25	10822701		Support, Transformer		Appelez-nous	-
26	5018-JJ		No.10 T X 3/8`` Screw		Appelez-nous	-
27	24642P01		Foamx(bl) 1 Pc.= 1 Ft.		Appelez-nous	-
28	42081P01		Transformer		Appelez-nous	-
29	40326P01		Bolt Xfmer (10)		Appelez-nous	-
30	5144-VV		Foam Gaske.75`` Width		Appelez-nous	-
