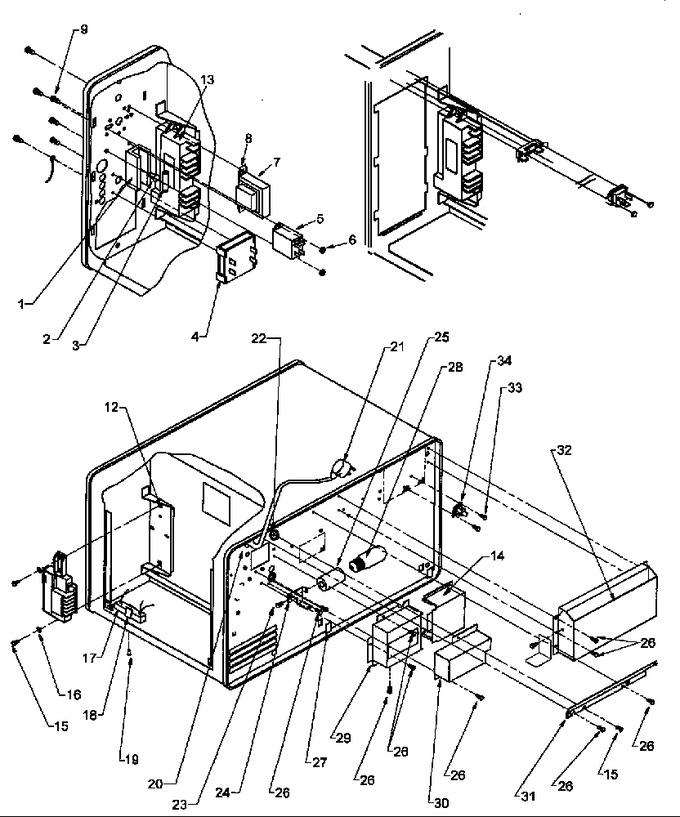

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	30928P01		Fuse Blk .250 Term, 40 Deg Tab		Appelez-nous	-
2	A4539601		Pop Rivet		Appelez-nous	-
3	M0805106		Fuse, 10 Amp				$ 3.70
4	4070001101		Int`l Lst Iv		Appelez-nous	-
5	38806P04		Relay		Appelez-nous	-
6	M0282005		Nut K				$ 7.07
7	46377P01		Lv Xfmr 220/240v		Appelez-nous	-
8	40558P01		Clip		Appelez-nous	-
9	Y00000000		See Note Screw-machine		Appelez-nous	-
12	42365P01		U-clip		Appelez-nous	-
13	4002006801		Svc Interlock Switch Asy		Appelez-nous	-
14	92506P01		Light Cover		Appelez-nous	-
15	M1D888		Screw K		Appelez-nous	-
16	Y00000000		See Note Washer-flat		Appelez-nous	-
17	31860P01		Resistor		Appelez-nous	-
18	5014-MM		Speed Clip		Appelez-nous	-
19	5067-PP		.094 Dia Pop Rivet Alum		Appelez-nous	-
20	26632P01		Strain Relf		Appelez-nous	-
21	1734386115		Power Cord Europe Uk		Appelez-nous	-
22	5145-S		Bushing		Appelez-nous	-
23	5000-ZZ		No.4 Ab X 3/8`` Screw		Appelez-nous	-
24	3000030101		Bracket, Lamp		Appelez-nous	-
25	2042100201		Socket, Lamp		Appelez-nous	-
26	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
27	6040516002		Tape Alum		Appelez-nous	-
28	2033349101		Light Bulb (230/240 Vac)		Appelez-nous	-
29	10822201		Cover, Component		Appelez-nous	-
30	41627P01		Cover-rear Vent		Appelez-nous	-
31	3000029301		Channel, Wire		Appelez-nous	-
32	R0163287		Kit, Exhaust Baffle		Appelez-nous	-
33	M0251717		Screw		Appelez-nous	-
34	1751172501		Protector Thermal 25amp Cavity		Appelez-nous	-
NI	5027-ZZ		Screw		Appelez-nous	-
NI	Y00000000		See Note Screw		Appelez-nous	-
