SELECT A DIAGRAM

01 - Cavity Assy


02 - Control Panel Assy


03 - Door Assy


04 - Front & Back Panel Components


05 - Miscelaneous Interior & Exterior

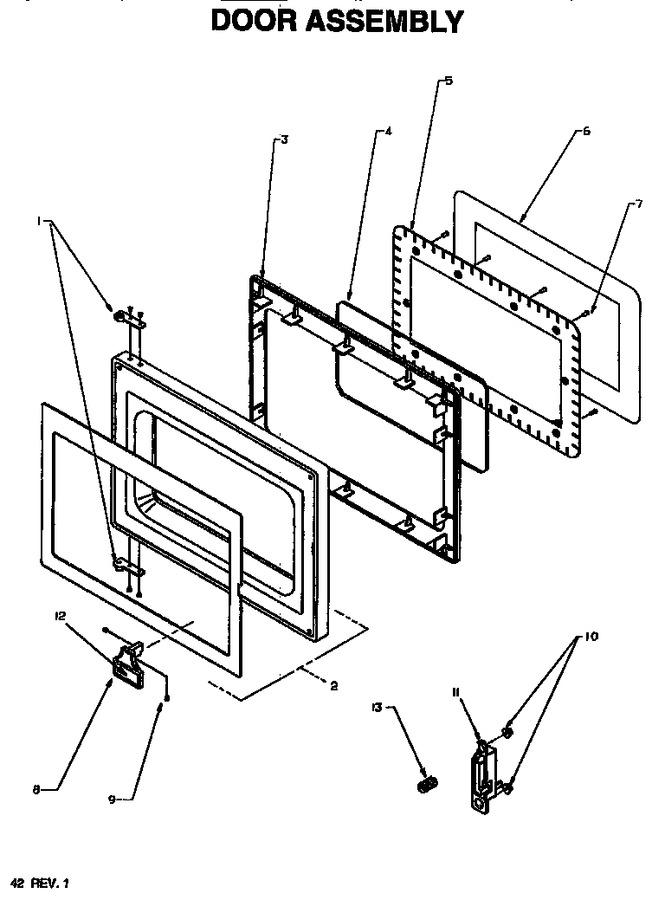

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0163252		Hinge Asy Kit		Appelez-nous	-
2	R0163279		Assy, Outer Door		Appelez-nous	-
3	R0163253		Filler-door		Appelez-nous	-
4	M70D246		Outer Window Kit		Appelez-nous	-
5	R0163255		Inner Door Kit		Appelez-nous	-
6	10785001		Window, Inner Door		Appelez-nous	-
7	5146-DD		No.8 Ab X 3/8`` Screw		Appelez-nous	-
8	M11D108		Handle, Door Kit		Appelez-nous	-
9	5051032202		Set Screw No.10 X .25		Appelez-nous	-
10	5015-T		No.10-24 Flange Whiz-lk Nut		Appelez-nous	-
11	R0163256		Door Latch Kit		Appelez-nous	-
12	1085809		Insert-handle		Appelez-nous	-
13	41205P01		Spring, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
