SELECT A DIAGRAM

01 - Cavity Assy


02 - Control Panel Assy


03 - Door Assy


04 - Front & Back Panel Components

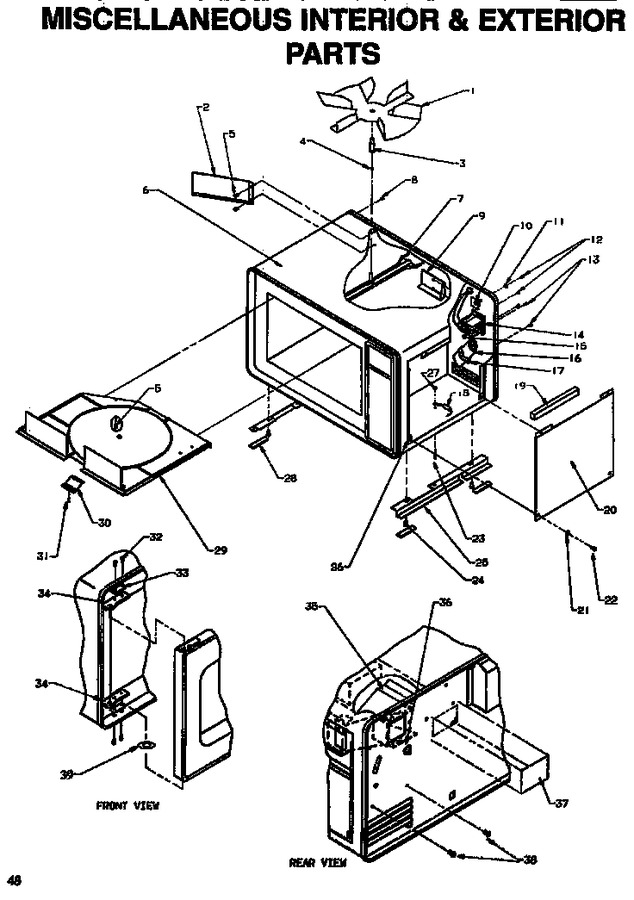

05 - Miscelaneous Interior & Exterior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40378P02Q		Blade, Stirrer		Appelez-nous	-
2	40365P01		Deflector		Appelez-nous	-
3	M2D571		Insert Stirrer Kit		Appelez-nous	-
4	38321P01		Ball		Appelez-nous	-
5	5039-T		.187 Dia Push Rivet		Appelez-nous	-
6	M77D131		Cavity Assy M77d131		Appelez-nous	-
7	M20D327		Stirrer Supt Bar Kit		Appelez-nous	-
8	Y00000000		See Note Screw		Appelez-nous	-
9	40375P01		Deflector		Appelez-nous	-
10	Y00000000		See Note Nut		Appelez-nous	-
11	5002-N		Washer A		Appelez-nous	-
12	Y00000000		See Note Screw-mach		Appelez-nous	-
13	5027-ZZ		Screw		Appelez-nous	-
14	30282P01		Termnl Block		Appelez-nous	-
15	5012-TT		Nut K		Appelez-nous	-
16	44035P01		Capacitor, H.v.		Appelez-nous	-
17	26046P01		Bracket		Appelez-nous	-
18	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
19	24642P01		Foamx(bl) 1 Pc.= 1 Ft.		Appelez-nous	-
20	M53D54		Access Pnl Kit		Appelez-nous	-
21	Y00000000		See Note Washer-lock		Appelez-nous	-
22	5145-E		No.8 Ab X 1/2`` Crow Foot Hd Scr		Appelez-nous	-
23	M1D888		Screw K		Appelez-nous	-
24	5067-S		.156 Pop Rivet		Appelez-nous	-
25	43855P01		Rail Support		Appelez-nous	-
26	40558P01		Clip		Appelez-nous	-
27	Y00000000		See Note Nut		Appelez-nous	-
28	M2D451		Tape 8-ft/pkg Kit		Appelez-nous	-
29	44103P01		Stirrer Cover		Appelez-nous	-
30	3010002701		Cover, Stirrer Support		Appelez-nous	-
31	5524122001		Plastic Fastener		Appelez-nous	-
32	5149-C		No.8-32 Pan Hd Mach Scr (25)		Appelez-nous	-
33	45540P01		Shim-hinge		Appelez-nous	-
34	R0156875		Door Hinge Assembly		Appelez-nous	-
35	M65D301		Duct Cavity		Appelez-nous	-
36	A4554808		Snap Bushing		Appelez-nous	-
37	5079-D		Polyester Tape 2.75``		Appelez-nous	-
38	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
39	M2D774		Ia Nylon Flat Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
