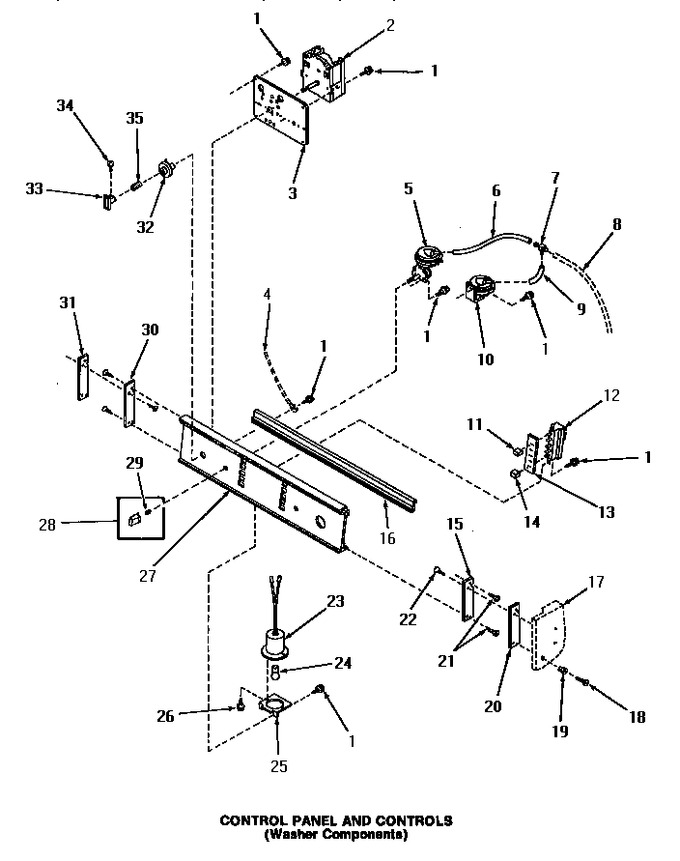

05 - Control Panel & Controls (washer)


06 - Control Panel (dryer)


07 - Dryer Loading Door, Front Panel & Seals


08 - Dryer Loading Door, Front Panel & Seals


09 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


10 - Gas Valve, Igniter & Gas Conversion Kits


11 - Heater Box


12 - Inlet/fill Hose/back Fl Preventer & Brkt


13 - Lint Filter, Washtub & Hub


14 - Mixing Valve Assy


15 - Motor, Exhaust Fan & Belt


16 - Motor, Mtg Bracket, Belt & Idler Assy


17 - Outer Tub, Cover & Pressure Hose


18 - Pump Assy, Hoses & Siphon Break Kit


19 - Rear Blkhd, Felt Seal & Cylinder Roller


20 - Short Post Drive (addition)


21 - Side Panels, Front Panel & Inner Base


22 - Solenoid & Lock Assemblies


23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
2	30125		Timer,3 Cycle-60hz 115		Appelez-nous	-
3	29808		Plate,switch Mount		Appelez-nous	-
4	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
5	30150		Switch,pressure-variab		Appelez-nous	-
6	29880		Tubing,plastic-11 Inch		Appelez-nous	-
7	30138		Tee,plastic		Appelez-nous	-
8	Y00000000		See Note Pressure Hose		Appelez-nous	-
9	29869		Tubing,plastic-3 Inch		Appelez-nous	-
10	30149		Switch,pressure-single		Appelez-nous	-
11	29910		Button,control-dark Br		Appelez-nous	-
12	30107		Switch,5 Position		Appelez-nous	-
13	30039		Cover, Switch		Appelez-nous	-
14	28778		Button,control-beige		Appelez-nous	-
15	29857		Cap,end-r.h.		Appelez-nous	-
16	29855		Gasket,shield		Appelez-nous	-
17	Y00000000		See Note Washer Outer Cabinet		Appelez-nous	-
18	29896		Phillips Head Screw		Appelez-nous	-
19	29890		Collar		Appelez-nous	-
20	30292		Gasket,end Cap & Adhes		Appelez-nous	-
21	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
22	30302		Screw,8abx1/2x6 Flat H		Appelez-nous	-
23	30148		Hose,pump To Drain		Appelez-nous	-
24	Y54608		Light Bulb		Appelez-nous	-
25	29809		Bracket,light		Appelez-nous	-
26	22145		Screw,6z-20x 3/8 Ss Rd		Appelez-nous	-
27	30170		Assy,control Panel-com		Appelez-nous	-
28	28124		Assy,knob-switch		Appelez-nous	-
29	10519		Retainer		Appelez-nous	-
30	29858		No Longer Available		Appelez-nous	-
31	29856		Gasket,end Cap & Adhes		Appelez-nous	-
32	28287		Timer Knob Indicator		Appelez-nous	-
33	29912		Assy,knob-timer		Appelez-nous	-
34	26318		Screw,8-32 X 1/4 Set S		Appelez-nous	-
35	26319		Spring		Appelez-nous	-
