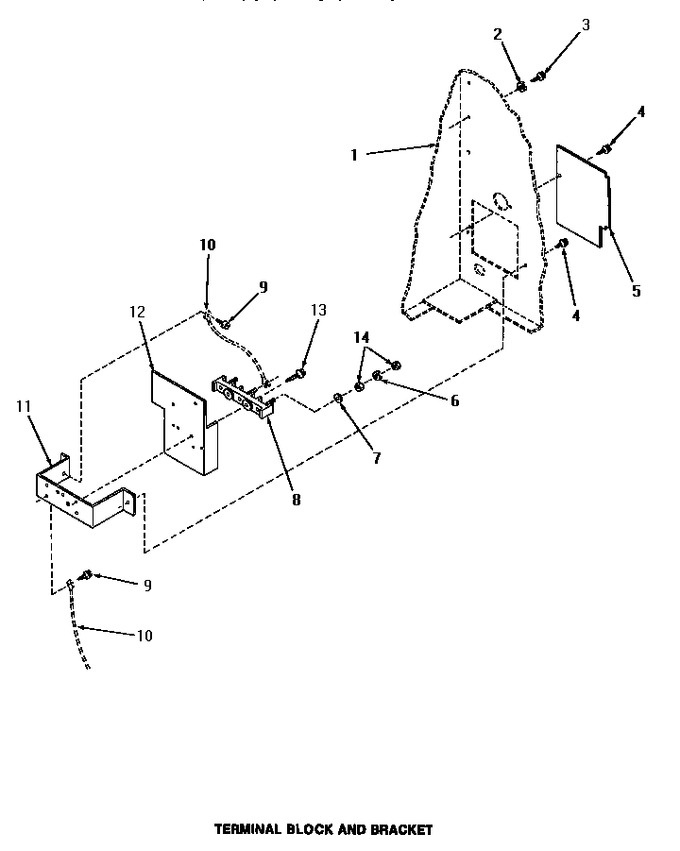

23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Cabinet		Appelez-nous	-
2	51474		Washer,13/64idx1/2odx.				$ 4.35
3	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
4	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
5	56044		Access Plate		Appelez-nous	-
6	51474		Washer,13/64idx1/2odx.				$ 4.35
7	56552		Lockwasher		Appelez-nous	-
8	58555		Terminal Block		Appelez-nous	-
9	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
10	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
11	58506		Terminal Block Bracket		Appelez-nous	-
12	56087		Shield,terminal Block		Appelez-nous	-
13	56131		Screw,10bt X 1 Tapping		Appelez-nous	-
14	Q6163		Nut				$ 2.09
