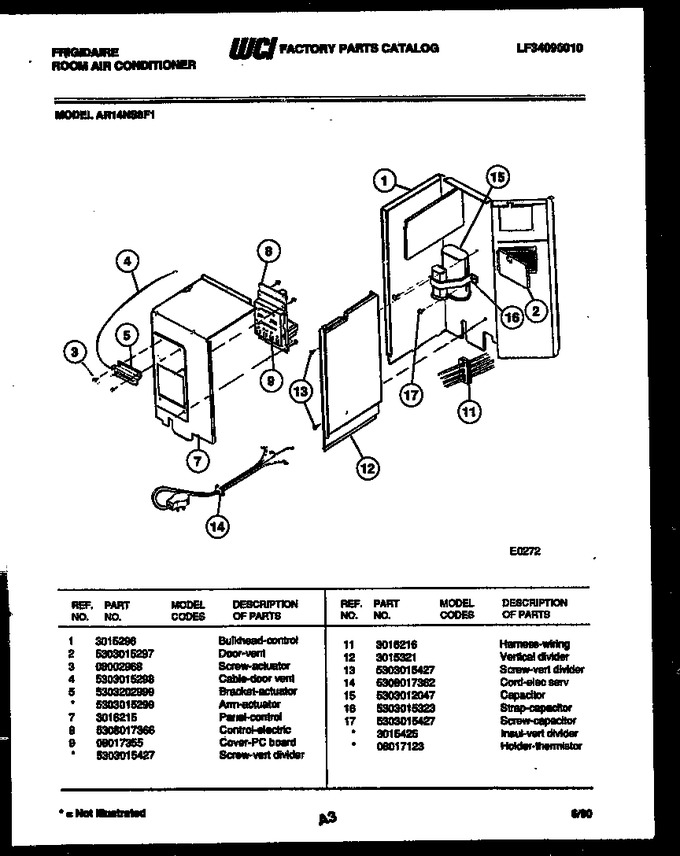

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 08002968 | Screw-actuator |
|
- | |||||
| 4 | 5303015298 | Cable-door Vent |
|
- | |||||
| 5 | 5303202999 | Bracket-actuator |
|
- | |||||
| 7 | 3016215 | Panel - Control |
|
- | |||||
| 8 | 5308017366 | Control-electric |
|
- | |||||
| 9 | 08017355 | Cover - Pc Board |
|
- | |||||
| 11 | 3016216 | Harness - Wiring |
|
- | |||||
| 12 | 3015321 | Vertical Divider |
|
- | |||||
| 13 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 14 | 5308017362 | Cord-elec Serv |
|
- | |||||
| 15 | 5303012047 | Capacitor |
|
- | |||||
| 16 | 5303015323 | Strap-capacitor |
|
- | |||||
| 17 | 5303015427 | Screw-capacitor |
|
- | |||||
| *31415 | 3015425 | Insul - Vert Divider |
|
- | |||||
| *31415 | 08017123 | Holder - Thermistor |
|
- | |||||
| 5A | 5303015299 | Arm-actuator (non-illustrated) |
|
- | |||||
| 9A | 5303015427 | Screw-vert Divider (non-illustrated) |
|
- |
