02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

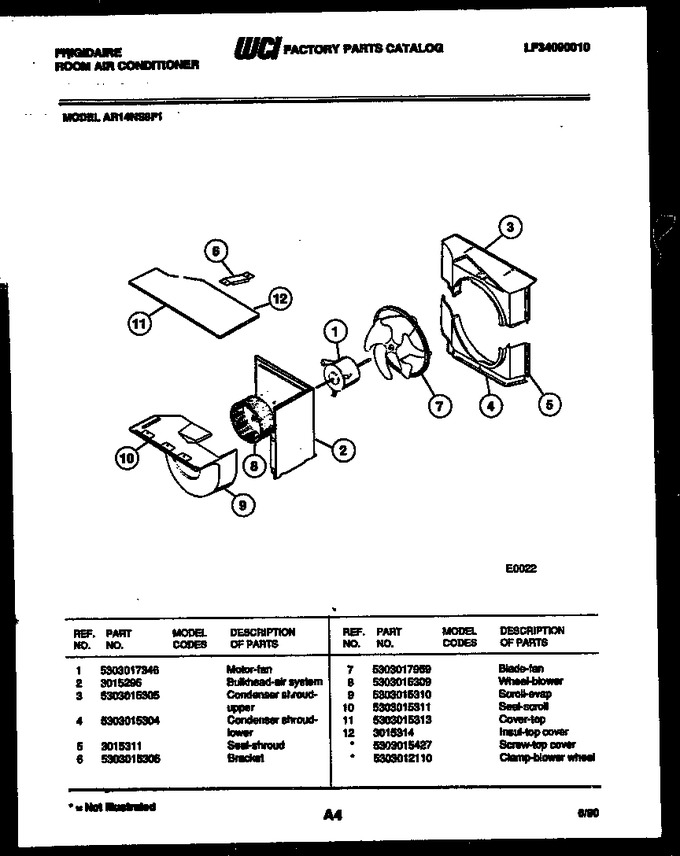

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017346 | Motor-fan |
|
- | |||||
| 2 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 3 | 5303015305 | Condenser Shroud-upper |
|
- | |||||
| 4 | 5303015304 | Condenser Shroud-lower |
|
- | |||||
| 5 | 3015311 | Seal - Shroud |
|
- | |||||
| 6 | 5303015306 | Bracket |
|
- | |||||
| 7 | 5303017959 | Blade-fan |
|
- | |||||
| 8 | 5303015309 | Wheel-blower |
|
- | |||||
| 9 | 5303015310 | Scroll-evap. |
|
- | |||||
| 10 | 5303015311 | Seal-scroll |
|
- | |||||
| 11 | 5303015313 | Cover - Top |
|
- | |||||
| 12 | 3015314 | Insul - Top Cover |
|
- | |||||
| *31415 | 5303015427 | Screw-top Cover |
|
- | |||||
| *31416 | 5303012110 | Clamp - Blower Wheel |
|
