01 - Cover

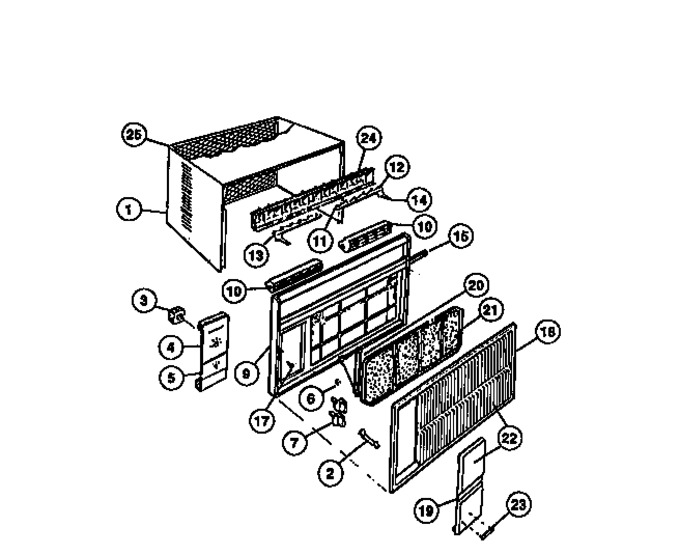

02 - Cabinet Front & Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Shell-cabinet |
|
- | |||||
| 2 | 5308010914 | Clip-front To Base |
|
- | |||||
| 3 | 5303001775 | Spacer-escutcheon |
|
- | |||||
| 4 | 5303001984 | Seal-escutcheon |
|
- | |||||
| 5 | 5303016762 | Escutheon, Dial Plate |
|
- | |||||
| 6 | 5303002189 | Knob-slide |
|
- | |||||
| 7 | 5308016109 | Knob-control |
|
- | |||||
| 8 | 3205525 | Front - Complete |
|
- | |||||
| 9 | 5308017171 | Frame - Front |
|
- | |||||
| 10 | 5308017160 | Frame-horiz. Louver |
|
- | |||||
| 11 | 5303002459 | Frame-vert. & Link Assy. |
|
- | |||||
| 12 | 5303002162 | Link-vert Louver Rh |
|
- | |||||
| 13 | 5303002163 | Link-vert Louver Lh |
|
- | |||||
| 14 | 5303001844 | Clip-link Detent |
|
- | |||||
| 15 | 08017353 | Seal - Mullion |
|
- | |||||
| 15 | 08016401 | Insert, Mullion (ni) |
|
- | |||||
| 17 | 5308008175 | Screw-front |
|
- | |||||
| 18 | 5308017172 | Panel-front |
|
- | |||||
| 19 | 530801696 | Door, Front |
|
- | |||||
| 20 | 5308017138 | Track-filter |
|
- | |||||
| 21 | 5308017190 | Filter-air Framed |
|
- | |||||
| 22 | 5308017177 | Panel-door Assy. |
|
- | |||||
| 23 | 08017126 | Plate-name |
|
- | |||||
| 24 | 3002435 | Frame-louver Vert |
|
- | |||||
| 24 | 5303016223 | Bracket, Frame Front (ni) |
|
- | |||||
| 25 | 5303016831 | Grill-rear Shell |
|
- |
