View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front & Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

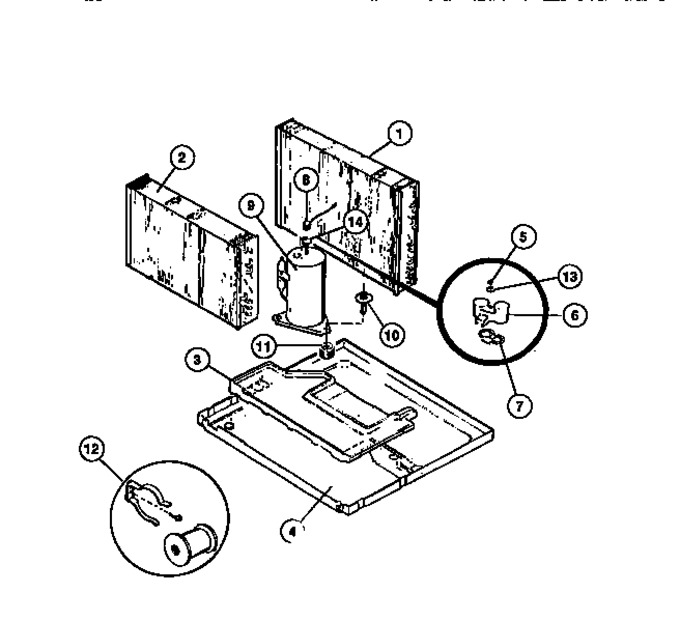

| 1 | 5303015457 | Evaporator |
|
- | |||||
| 2 | 5303208674 | Condenser |
|
- | |||||
| 3 | 5303208665 | Tray-evaporator |
|
- | |||||
| 4 | 3017311 | Base |
|
- | |||||
| 5 | 5303002038 | Nut-terminal Cover |
|
- | |||||
| 6 | 5303211011 | Cover-terminal |
|
- | |||||
| 7 | 5303002035 | Gasket-cover |
|
- | |||||
| 8 | 5303017310 | Overload |
|
- | |||||
| 9 | 5303018220 | Compressor |
|
- | |||||
| 10 | 5303015946 | Nut - Compressor Mtg. |
|
- | |||||
| 11 | 5303015945 | Grommet |
|
- | |||||
| 12 | 5303001746 | Capillary Tube (cut To 35``) (2) (ni) |
|
- | |||||
| 12 | 5300265301 | Filter, Drier (ni) |
|
$ 284.30 | |||||
| 12 | 5303201723 | Compressor Start-kit |
|
- | |||||
| 13 | 5303002037 | Gasket-nut |
|
- | |||||
| 14 | 5303002036 | Spring-overload |
|
- |
