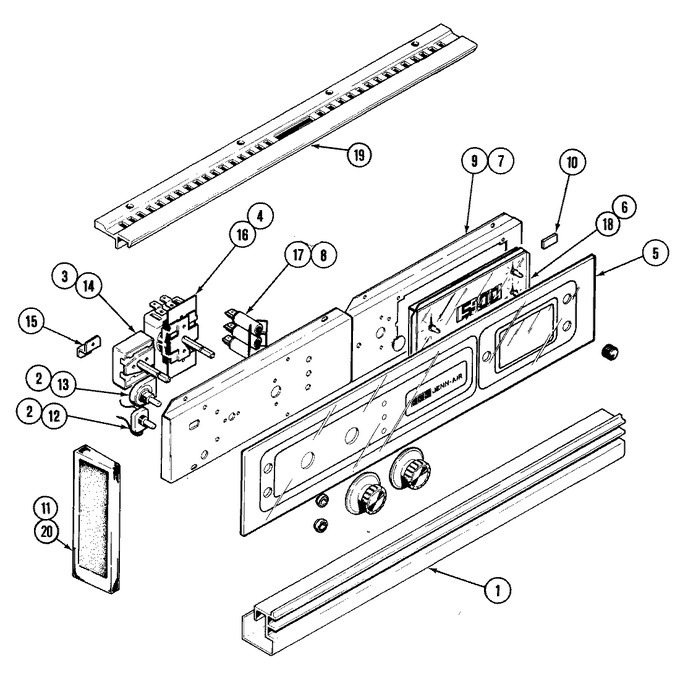

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701608		Extrusion, Bottom	1	Appelez-nous	-
2	701610		Bezel, Switch	1	Appelez-nous	-
3	Y703059		Knob, Selector-upper	4	Appelez-nous	-
3	DE81-03197A		Knob, Selector   (Replaces: 701611)	1-3			$ 169.69
4	701612		Knob, Thermostat	1	Appelez-nous	-
4	WPY703499		Knob, Thermostat   (Replaces: 703057)	1			$ 43.52
5	DE81-09193A		Glass   (Replaces: 701636)	1			$ 197.49
6	Y702547		Knob, Clock	1	Appelez-nous	-
6	700564		Knob, Clock	1	Appelez-nous	-
7	DE81-06143A		Panel (lt)   (Replaces: 701615)	1			$ 393.48
8	Y700630		Lens, Indicator Lights	1			$ 4.18
9	DE81-03509A		Panel (rt)   (Replaces: 701617)	1			$ 221.06
10	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1		Immediately	$ 138.07
11	701619		Cap, End (rt)	1	Appelez-nous	-
12	703030		Switch, Momentary	1	Appelez-nous	-
13	DE81-08481A		Switch, Push   (Replaces: 701621)	1			$ 606.80
14	Y701622		Switch, Selector	1-3	Appelez-nous	-
14	703167		Switch, Selector	4	Appelez-nous	-
15	701609		Angle, Attachment	1	Appelez-nous	-
15	Y707664		Washer	1	Appelez-nous	-
16	Y703148		Thermostat	4	Appelez-nous	-
16	Y701625		Thermostat	1-3	Appelez-nous	-
17	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
17	Y700557		Light, Indicator	1	Appelez-nous	-
18	703032		Clock	1	Appelez-nous	-
19	701634		Extrusion, Top	1	Appelez-nous	-
20	703033		Block, Terminal	1	Appelez-nous	-
20	703298		Wire, Brown	1	Appelez-nous	-
20	703297		Wire, Yellow	1	Appelez-nous	-
20	DE81-05719A		Wire, Blue   (Replaces: 703296)	1			$ 412.51
20	Y703294		Wire, Gray	1	Appelez-nous	-
20	701635		Cap, End (lt)	1	Appelez-nous	-
20	703256		Harness, Wire	1	Appelez-nous	-
