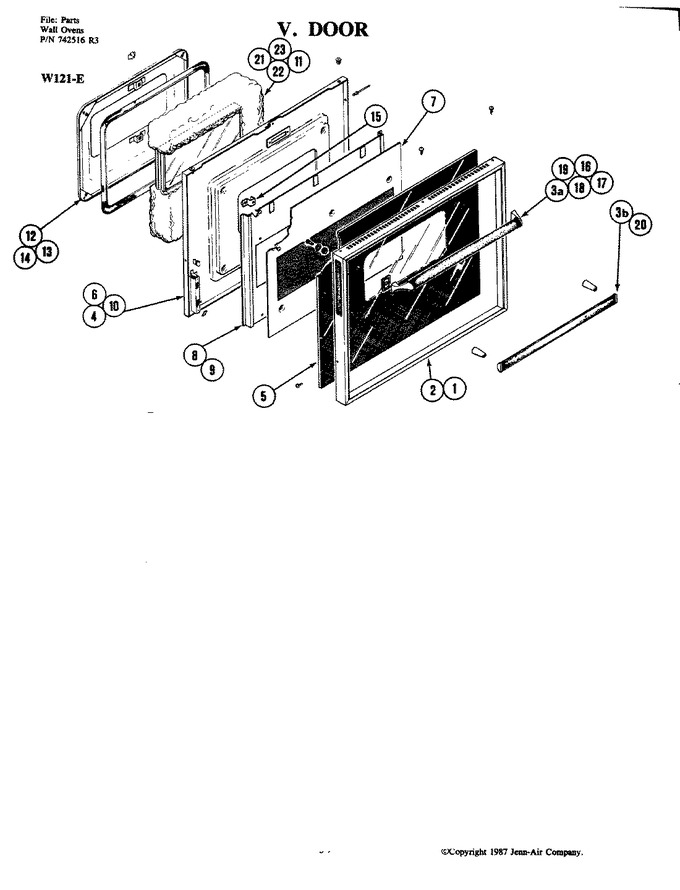

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 701638) | 1 |
|
Immediately | $ 12.62 | |||
| 2 | 702774 | Frame | 1 |
|
- | ||||
| 3 | DE81-07473A | Handle, Kit (Replaces: 701640) | 1 |
|
$ 642.49 | ||||
| 3 | 702930 | Handle----na | 1 |
|
- | ||||
| 4 | Y700834 | Clip | 1 |
|
- | ||||
| 5 | 701642 | Glass, Screened | 1 |
|
- | ||||
| 6 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 7 | 701644 | Panel, Perforated | 1 |
|
- | ||||
| 8 | 11034884 | Baffle, Door (Replaces: 701645) | 1 |
|
$ 93.30 | ||||
| 9 | W10840861 | Pad, Spacer (Replaces: Y702688) | 1 |
|
$ 8.89 | ||||
| 10 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 1 |
|
$ 128.48 | ||||
| 10 | 701647 | Liner, Door | 1 |
|
- | ||||
| 11 | 701648 | Window Pack | 1 |
|
- | ||||
| 12 | Y701649 | Plug, Oven | 1 |
|
- | ||||
| 13 | WP701650 | Seal, Oven Door (Replaces: 701650) | 1 |
|
$ 184.62 | ||||
| 14 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 15 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 16 | Y700570 | Screw | 1 |
|
- | ||||
| 16 | W11164114 | Screw (Replaces: Y708499) | 1 |
|
$ 3.76 | ||||
| 17 | Y700446 | Washer | 1 |
|
$ 5.27 | ||||
| 18 | 715939 | Bushing | 1 |
|
- | ||||
| 19 | 701656 | Pad, Mounting | 1 |
|
- | ||||
| 20 | 701832 | Post, Mounting | 1 |
|
- | ||||
| 21 | 701658 | Insulation, Bottom | 1 |
|
- | ||||
| 22 | DE81-08905A | Insulation, Side (Replaces: 701659) | 1 |
|
$ 160.26 | ||||
| 23 | 707345 | Screw | 1 |
|
- | ||||
| 23 | 701149 | Locktite (handle) | 1 |
|
- | ||||
| 23 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 23 | 701660 | Insulation, Top | 1 |
|
- |
