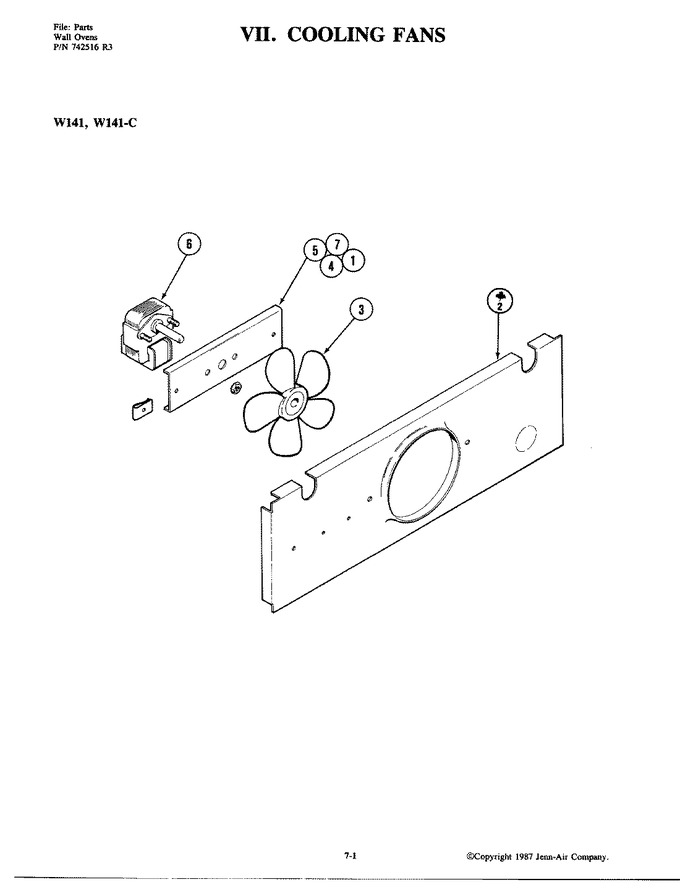

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 715773) | 1-5 |
|
Immediately | $ 7.04 | |||
| 2 | 703096 | Plate, Motor | 2-5 |
|
- | ||||
| 2 | DE81-09287A | Plate, Motor (Replaces: 702044) | 1 |
|
$ 165.01 | ||||
| 3 | 701718 | Blade, Fan | 1-5 |
|
- | ||||
| 4 | M0282005 | Nut, Hex (Replaces: 701719) | 1 -5 |
|
$ 7.07 | ||||
| 5 | Y703570 | Mount, Motor | 5 |
|
- | ||||
| 5 | DE81-07542A | Mount, Motor (Replaces: 701720) | 1-4 |
|
$ 275.66 | ||||
| 6 | DE81-06991A | Lug, Mounting (Replaces: 701722) | 1-5 |
|
$ 277.58 | ||||
| 6 | Y701721 | Motor, Fan | 1-5 |
|
- | ||||
| 7 | Y700556 | Clip, J | 1-5 |
|
- |
