SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Convection Fan


04 - Cooling Fan

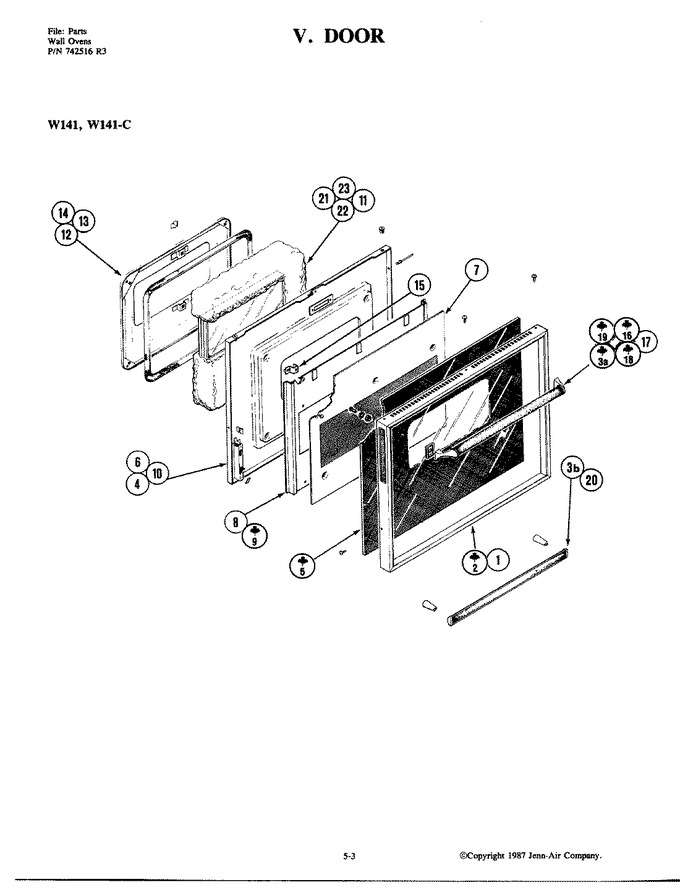

05 - Door


06 - Internal Controls


07 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: 701638)	1-8		Immediately	$ 12.62
2	702774		Frame	1-7	Appelez-nous	-
2	703705		Frame	8	Appelez-nous	-
3	Y703707		Handle	8	Appelez-nous	-
3	702930		Handle----na	1-7	Appelez-nous	-
3	DE81-07473A		Handle, Kit   (Replaces: 701640)	1-8			$ 642.49
4	Y700834		Clip	1-8	Appelez-nous	-
5	Y703706		Glass, Outer	8	Appelez-nous	-
5	701642		Glass, Screened	1-7	Appelez-nous	-
6	701643		Nut, Push In	1-8	Appelez-nous	-
7	701644		Panel, Perforated	1-8	Appelez-nous	-
8	11034884		Baffle, Door   (Replaces: 701645)	1-8			$ 93.30
9	715938		Pad, Spacer	8	Appelez-nous	-
9	W10840861		Pad, Spacer   (Replaces: Y702688)	1-7			$ 8.89
10	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1-8			$ 128.48
10	712188		Liner, Door	4-8	Appelez-nous	-
10	701647		Liner, Door	1-3	Appelez-nous	-
11	701648		Window Pack	1-8	Appelez-nous	-
12	Y701649		Plug, Oven	1-8	Appelez-nous	-
13	WP701650		Seal, Oven Door   (Replaces: 701650)	1-8			$ 184.62
14	Y700503		Clip, Retainer	1-8	Appelez-nous	-
15	701652		Bracket, Stand-off	1-8	Appelez-nous	-
15	W11233072		Screw   (Replaces: Y708733)	1-8		Immediately	$ 12.62
16	W11164114		Screw   (Replaces: Y708499)	1-8			$ 3.76
16	Y700570		Screw	1-7	Appelez-nous	-
16	Y703431		Palnut	8	Appelez-nous	-
17	Y700446		Washer	1-8			$ 5.27
18	715939		Bushing	1-7	Appelez-nous	-
18	Y703433		Bushing	8	Appelez-nous	-
19	Y703430		Pad, Mounting	8	Appelez-nous	-
19	701656		Pad, Mounting	1-7	Appelez-nous	-
20	701832		Post, Mounting	1-8	Appelez-nous	-
21	701658		Insulation, Bottom	1-8	Appelez-nous	-
22	DE81-08905A		Insulation, Side   (Replaces: 701659)	1-8			$ 160.26
23	701660		Insulation, Top	1-8	Appelez-nous	-
23	WP210720		Rivet   (Replaces: 701662)	1-8			$ 12.14
23	707345		Screw	1-8	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
