01 - Basic Body (w198w-c)


02 - Control Panel (w198w-c)


03 - Door (w198w-c)


04 - Fans-convection (w198w-c)


05 - Fans-cooling (w198w-c)


06 - Internal Controls (w198w-c)


07 - Oven Liner (w198w-c)

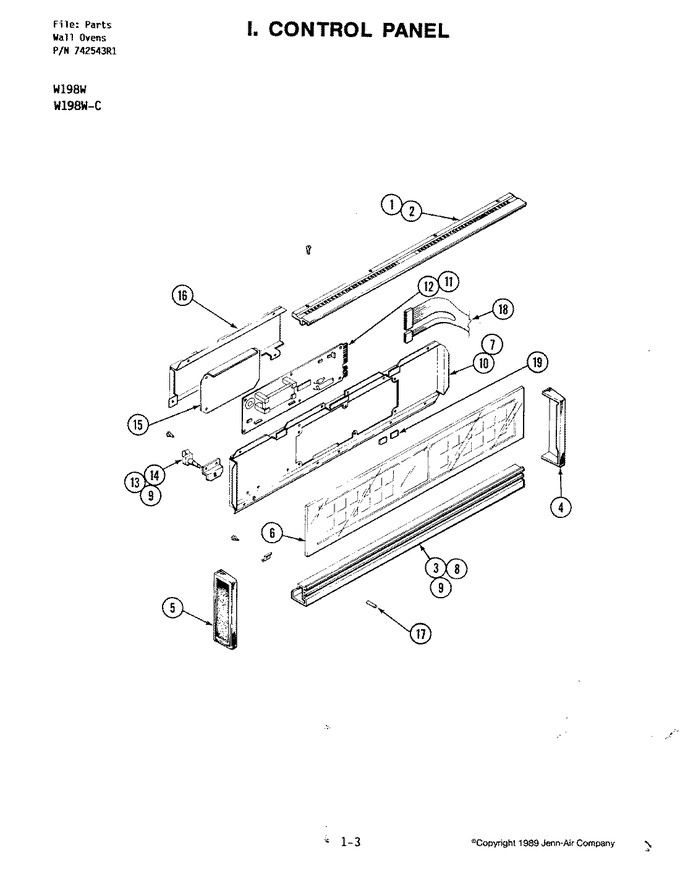

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701634		Extrusion, Top	1	Appelez-nous	-
2	712066		Screw	1	Appelez-nous	-
3	704458		Extrusion, Bottom (wht)	1	Appelez-nous	-
4	703136		End Cap (rt-chr)	1	Appelez-nous	-
5	DE81-09833A		End Cap (lt-chr)   (Replaces: 703137)	1			$ 761.31
6	712527		Glass	1	Appelez-nous	-
7	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
8	701609		Angle, Attachment	1	Appelez-nous	-
9	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
10	702788		Bracket, P.c. Mount	1	Appelez-nous	-
11	702800		Support, Circuit Board	1	Appelez-nous	-
12	702801		Board, P.c.----na	1	Appelez-nous	-
13	702790		Switch, Mount Switch	1	Appelez-nous	-
14	Y705011		Switch, Push (alum)	1	Appelez-nous	-
15	702799		Shield, Moisture	1	Appelez-nous	-
16	702789		Cover	1	Appelez-nous	-
17	704604		Extension, Switch	1	Appelez-nous	-
18	Y704180		Harness, Wire	1	Appelez-nous	-
18	702816		Harness, Low Voltage	1	Appelez-nous	-
18	702813		Harness, Wire	1	Appelez-nous	-
19	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1		Immediately	$ 138.07
