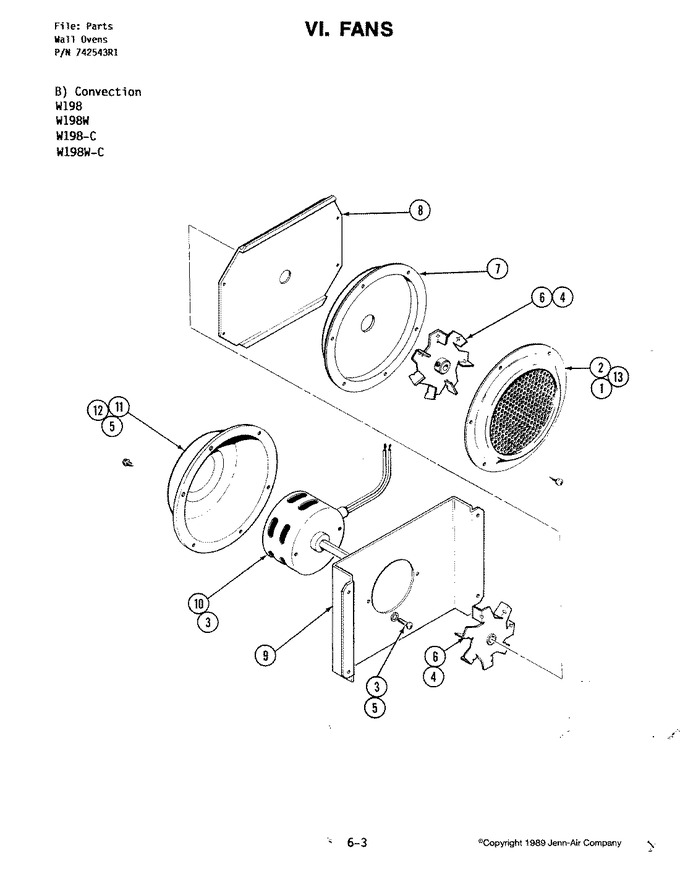

04 - Fans-convection (w198w-c)


05 - Fans-cooling (w198w-c)


06 - Internal Controls (w198w-c)


07 - Oven Liner (w198w-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
2	701707		Plate, Convection Front	1	Appelez-nous	-
3	WP488234		Screw   (Replaces: 708861)	1			$ 6.07
4	701709		Screw, Set	1	Appelez-nous	-
5	715910		Washer, Lock	1	Appelez-nous	-
6	701711		Wheel, Convection	1	Appelez-nous	-
7	DE81-03744A		Plate, Convection Back   (Replaces: 701712)	1			$ 312.62
8	DE81-03745A		Cover, Motor Front   (Replaces: 701713)	1			$ 251.40
9	Y700601		Plate, Motor Mount	1	Appelez-nous	-
10	701715		Motor, Convection	1	Appelez-nous	-
11	701716		Cover, Motor	1	Appelez-nous	-
12	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
13	WP74003976		Washer   (Replaces: 702592)	1			$ 6.47
