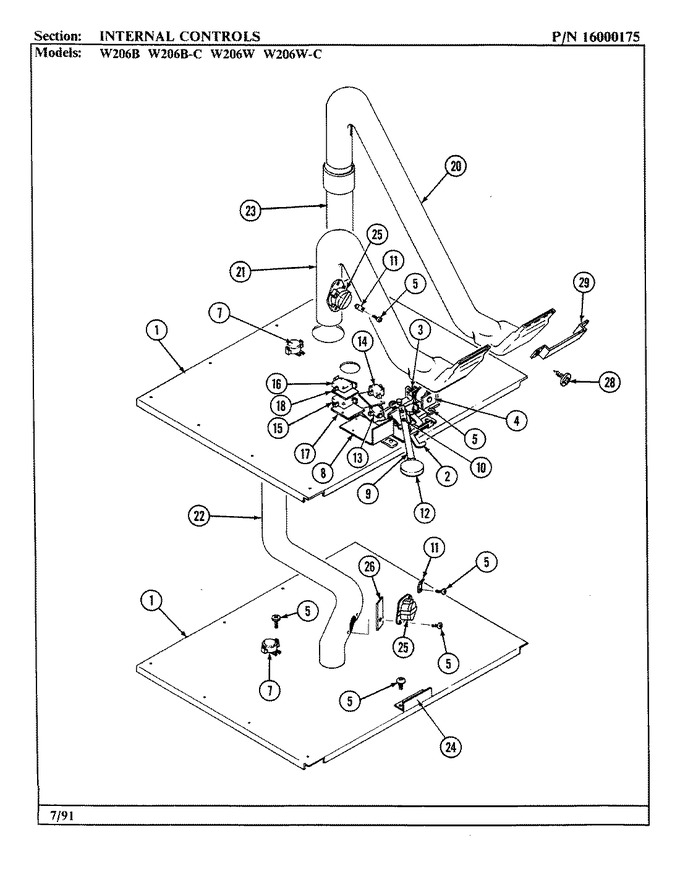

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704684		Panel, Top	1	Appelez-nous	-
2	Y703357		Latch Assy.	1	Appelez-nous	-
3	Y701686		Pin, Cotter	1	Appelez-nous	-
4	Y702526		Solenoid	1	Appelez-nous	-
5	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
6	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
7	703259		Limit, Thermostat	1	Appelez-nous	-
7	701687		Thermostat	1	Appelez-nous	-
8	701706		Shield, Switch	1	Appelez-nous	-
10	707407		Screw	1			$ 6.42
10	Y700862		Washer	1	Appelez-nous	-
11	Y702711		Terminal	1	Appelez-nous	-
12	701671		Spring, Knob	1	Appelez-nous	-
12	Y703932		Knob (blk)	1	Appelez-nous	-
13	Y702360		Switch, Solenoid	1	Appelez-nous	-
14	Y703732		Switch, Latch	1	Appelez-nous	-
15	702805		Switch, Door	1	Appelez-nous	-
16	702806		Switch, Door	1	Appelez-nous	-
17	Y702350		Insulator	1	Appelez-nous	-
18	703264		Insulator	1	Appelez-nous	-
19	702807		Screw	1	Appelez-nous	-
20	703067		Tube, Vent-top (upper)	1	Appelez-nous	-
21	703381		Tube, Vent-top Offset	1	Appelez-nous	-
22	705097		Tube, Vent (lwr)	1	Appelez-nous	-
23	705096		Tube, Vent Bottom	1	Appelez-nous	-
24	703269		Bracket, Extrusion (lower)	1	Appelez-nous	-
25	702993		Limit, Oven	1	Appelez-nous	-
25	Y702107		Limit, Oven	1	Appelez-nous	-
26	04100154		Wire Orange	1	Appelez-nous	-
26	703767		Wire, Gray	1	Appelez-nous	-
26	704922		Bracket, Anti Short	1	Appelez-nous	-
27	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
28	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
29	701680		Bracket, Vent Tube	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
