SELECT A DIAGRAM

01 - Blower Motor (convection Fan)


02 - Blower Motor (cooling Fan)


03 - Body


04 - Door

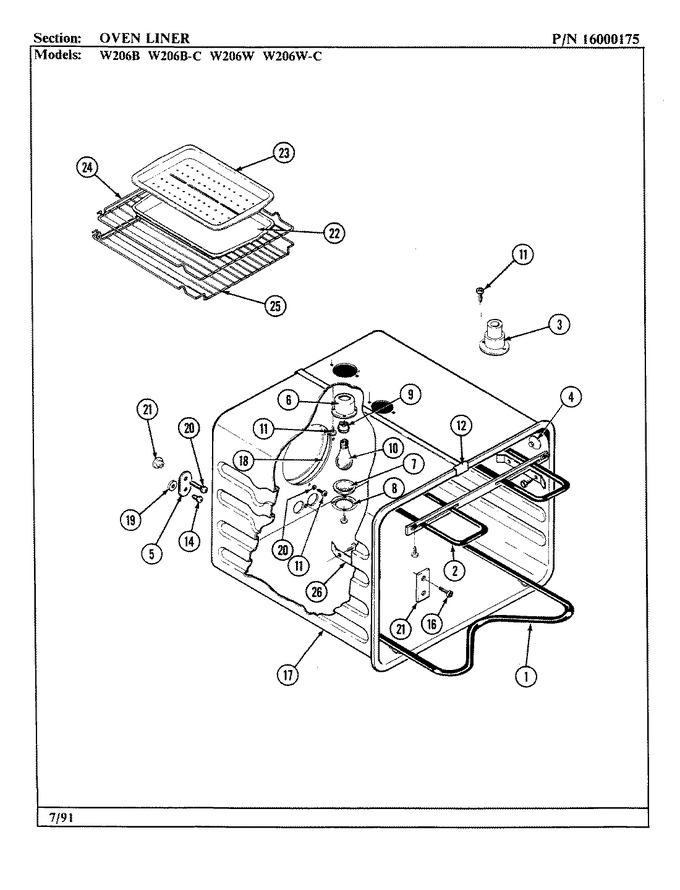

05 - Internal Controls


06 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1		Immediately	$ 136.96
1	Y704665		Element, Bake	1	Appelez-nous	-
2	WPY04100514		Element, Broil   (Replaces: Y704667)	1			$ 138.97
3	701738		Tube, Vent	1	Appelez-nous	-
3	704259		Eliminator, Housing	1	Appelez-nous	-
4	712088		Cover, Meat Probe	1	Appelez-nous	-
5	701742		Plate, Grounding	1	Appelez-nous	-
6	704142		Receptacle, Holder	1	Appelez-nous	-
7	Y704143		Lens, Light	1	Appelez-nous	-
8	Y704144		Retainer, Lens	1	Appelez-nous	-
9	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
10	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
11	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
12	Y702618		Clip, Oven	1	Appelez-nous	-
13	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
14	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
15	Y705342		Cover, Sensor Hole	1	Appelez-nous	-
16	WPW10253196		Screw   (Replaces: Y707113)	1			$ 3.76
17	Y04100817		Oven Weld Assy.	1	Appelez-nous	-
18	DE81-03744A		Plate, Convection Back   (Replaces: 701712)	1			$ 312.62
18	705343		Plate, Non-convect	1	Appelez-nous	-
19	715910		Washer, Lock	1	Appelez-nous	-
20	705341		Screw	1	Appelez-nous	-
21	715294		Nut, Tee	1	Appelez-nous	-
22	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 52.04
23	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 52.04
24	Y704661		Rack, Oven	1	Appelez-nous	-
25	Y704663		Rack, Oven (offset)	1	Appelez-nous	-
26	Y701541		Clip, Bulb	1	Appelez-nous	-
26	WP74003976		Washer   (Replaces: 702592)	1			$ 6.47

    View Diagram in Separate Window       Print Part List
