SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

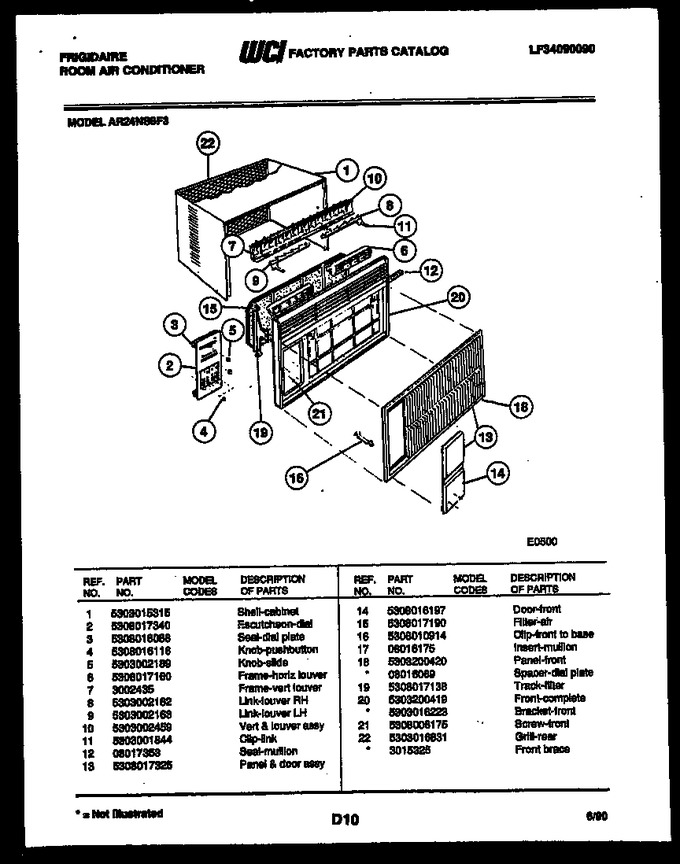

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Shell-cabinet |
|
- | |||||
| 2 | 5308017340 | Escutcheon-dial |
|
- | |||||
| 3 | 5308016088 | Seal-dial Plate |
|
- | |||||
| 4 | 5308016116 | Knob-push Button |
|
- | |||||
| 5 | 5303002189 | Knob-slide |
|
- | |||||
| 6 | 5308017160 | Frame-horiz. Louver |
|
- | |||||
| 7 | 3002435 | Frame-vert Louver |
|
- | |||||
| 8 | 5303002162 | Link-louver Rh |
|
- | |||||
| 9 | 5303002163 | Link-louver Lh |
|
- | |||||
| 10 | 5303002459 | Vert & Louver Assy |
|
- | |||||
| 11 | 5303001844 | Clip-link |
|
- | |||||
| 12 | 08017353 | Seal - Mullion |
|
- | |||||
| 13 | 5308017325 | Panel & Door Assy |
|
- | |||||
| 14 | 5308016197 | Door-front |
|
- | |||||
| 15 | 5308017190 | Filter-air |
|
- | |||||
| 16 | 5308010914 | Clip-front To Base |
|
- | |||||
| 17 | 08016175 | Insert - Mullion |
|
- | |||||
| 18 | 5303200420 | Panel-front |
|
- | |||||
| 19 | 5308017138 | Track-filter |
|
- | |||||
| 20 | 5303200419 | Front-complete |
|
- | |||||
| 21 | 5308008175 | Screw-front |
|
- | |||||
| 22 | 5303016831 | Grill-rear |
|
- | |||||
| *32454 | 3015325 | Front Brace |
|
- | |||||
| 18A | 08016089 | Spacer - Dial Plate (non-illustrated) |
|
- | |||||
| 20A | 5303016223 | Bracket-front (non-illustrated) |
|
- |
