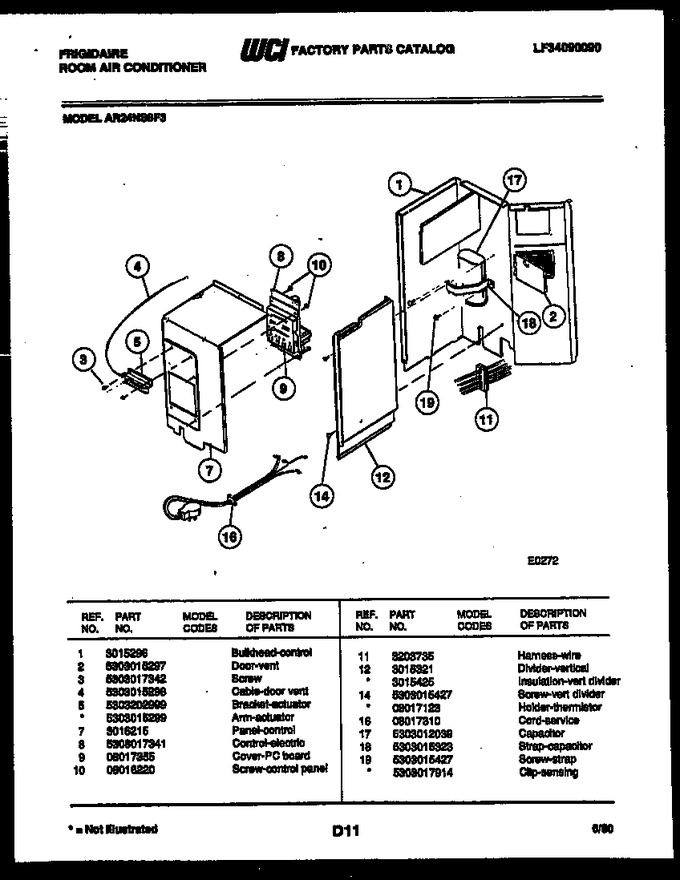

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303017342 | Screw |
|
- | |||||
| 4 | 5303015298 | Cable-door Vent |
|
- | |||||
| 5 | 5303202999 | Bracket-actuator |
|
- | |||||
| 7 | 3016215 | Panel - Control |
|
- | |||||
| 8 | 5308017341 | Control-electric |
|
- | |||||
| 9 | 08017355 | Cover - Pc Board |
|
- | |||||
| 10 | 08016220 | Screw - Control Panel |
|
- | |||||
| 11 | 3203735 | Harness - Wire |
|
- | |||||
| 12 | 3015321 | Divider - Vertical |
|
- | |||||
| 14 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 16 | 08017310 | Cord - Service |
|
- | |||||
| 17 | 5303012039 | Capacitor |
|
- | |||||
| 18 | 5303015323 | Strap-capacitor |
|
- | |||||
| 19 | 5303015427 | Screw-strap |
|
- | |||||
| *32455 | 5303017914 | Clip-sensing |
|
- | |||||
| 12A | 3015425 | Insulation-vert Divider (non-illustrated) |
|
- | |||||
| 14A | 08017123 | Holder - Thermistor (non-illustrated) |
|
- | |||||
| 5A | 5303015299 | Arm-actuator (non-illustrated) |
|
- |
