Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl K Appelez-nous -
1 25-7793 Screw K Appelez-nous -
1 35-2553 Panel, Control K Appelez-nous -
2 35-2488 Cap, End (lt) K Appelez-nous -
2 35-2487 Cap, End (rt) K Appelez-nous -
3 25-7697 Screw K Appelez-nous -
3 34-9487 Plate, Reinforcement K Appelez-nous -
3 25-7851 Speedclip, End Cap To Top K Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) K In-Stock Immediately $ 6.90

4 25-7852 Speedclip, Rr Shld To End Cap K Appelez-nous -
5 53-0277 Trim, End Cap (rt) K Appelez-nous -
5 53-0278 Trim, End Cap (lt) K Appelez-nous -
6 25-7760 Screw K Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) K In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl K Appelez-nous -
9 53-1676 Shield, Control K Appelez-nous -
10 25-7853 Retaining Ring K Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) K In-Stock Immediately $ 7.04

10 35-2688 Shield, Control Panel (rear) K Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) K In-Stock Immediately $ 7.15

11 35-2748CP Timer   (Replaces: 35-2211) K Appelez-nous -
12 25-0205 Screw K Appelez-nous -
13 35-2254 Skirt & Ring Assy K Appelez-nous -
14 35-2187 Knob, Timer K Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) K In-Stock Immediately $ 7.04

15 35-0114 Temp Switch K Appelez-nous -
16 35-2185 Knob, Selector (blk) K Appelez-nous -
17 35-2193 Switch, Rotary Speed K Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) K In-Stock Immediately $ 7.04

18 WP90767 Screw   (Replaces: 25-3092) K In-Stock Immediately $ 7.04

18 WP21001554 Pressure Switch   (Replaces: 35-2145) K Special Order $ 143.59

19 35-2567 Manual, U&c Insert K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

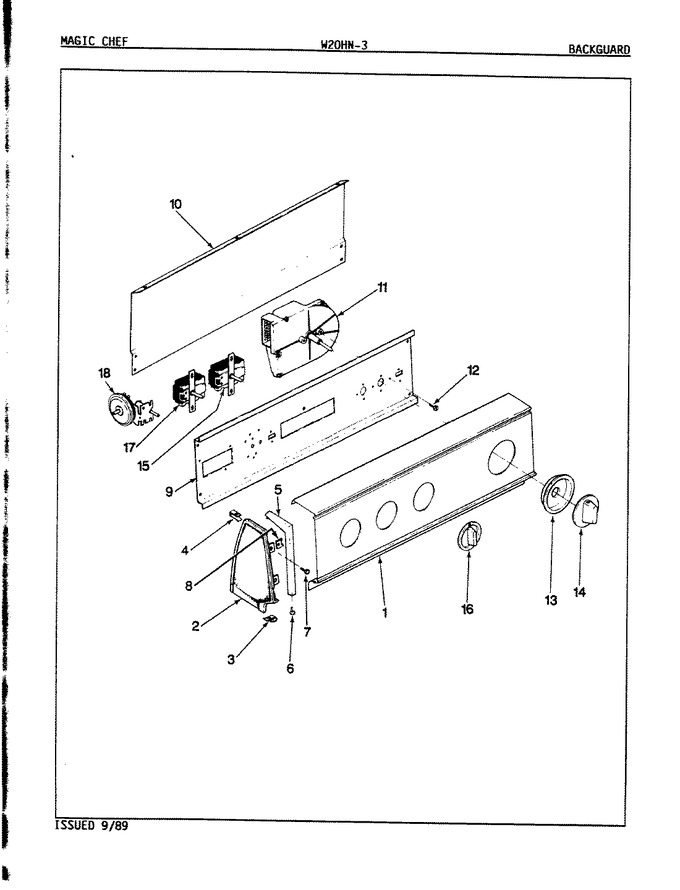

Diagram for W20HA3
