Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2026-25 Lid (h Wht) K Appelez-nous -
2 25-7436 Nylite Washer K Appelez-nous -
2 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) K Special Order $ 73.22

3 25-7438 Screw K Appelez-nous -
4 25-7086 Washer K Appelez-nous -
4 WP35-2045 Pin, Hinge   (Replaces: 35-2045) K In-Stock Immediately $ 18.03

5 WP25-7893 Screw   (Replaces: 25-7893) K Special Order $ 7.14

6 WP35-2044 Hinge, Lid   (Replaces: 35-2044) K In-Stock Immediately $ 7.52

7 35-0581 Bumper, Door (lid) K Appelez-nous -
8 35-2063 Bushing, Insulator K Appelez-nous -
8 35-2064 Bushing, Insulating K Appelez-nous -
9 25-7463 Screw K Appelez-nous -
10 25-7437 Screw K Appelez-nous -
11 33-8911 Door Switch K Appelez-nous -
11 33-9064 Door Switch Asm K Appelez-nous -
12 33-8289 Bracket K Appelez-nous -
13 25-7878 Clip K Appelez-nous -
14 33-9063 Door Switch Lever K Appelez-nous -
15 35-2739-25 Top, Cabinet (harv.wt) K Appelez-nous -
16 33-9906 Body, Bleach Dispenser K Appelez-nous -
17 35-0680 Cord, Power K Appelez-nous -
18 WP25-7893 Screw   (Replaces: 25-7893) K Special Order $ 7.14

19 35-2846 Hinge   (Replaces: 33-7450) K Special Order $ 22.94

20 33-0930 Pad, Top Hinge K Appelez-nous -
21 33-6099 Clamp K Appelez-nous -
22 53-0643 Pin, Locator K Appelez-nous -
23 34-9701 Guide, Cabinet K Appelez-nous -
24 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) K In-Stock Immediately $ 6.98

25 53-0643 Pin, Locator K Appelez-nous -
26 35-2084-25 Panel, Front K Appelez-nous -
27 53-0120 Clip, Front Panel K Special Order $ 11.32

28 33-2653 Bumper, Cabinet K Appelez-nous -
29 35-2106-25 Cabinet Assy. (hw) K Appelez-nous -
30 33-2653 Bumper, Cabinet K Appelez-nous -
31 35-2108 Shield,rear(nla,order Cab Kit) K Appelez-nous -
32 WP681414 Screw   (Replaces: 25-7733) K In-Stock Immediately $ 7.07

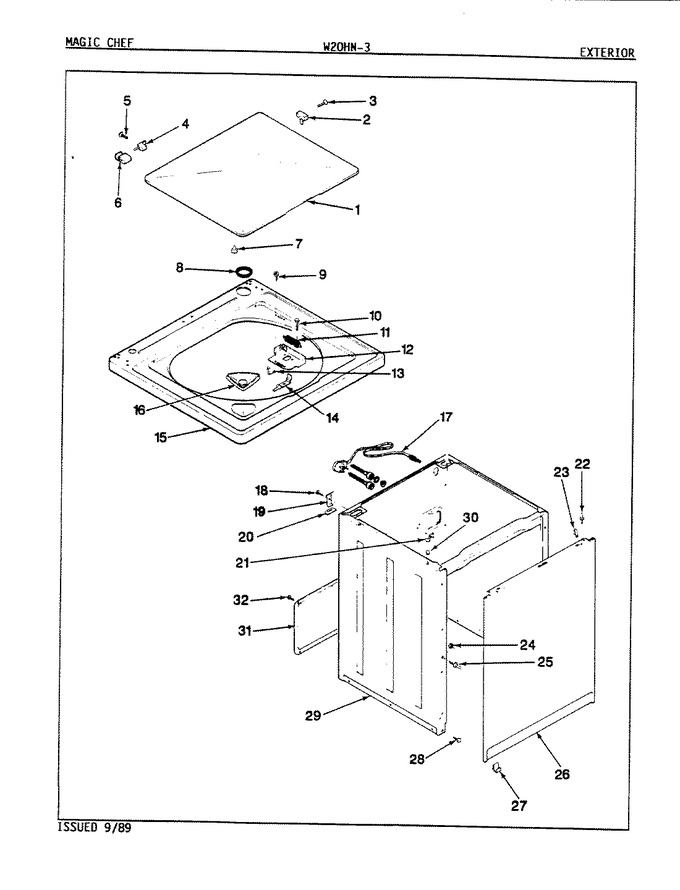

    View Diagram in Separate Window     Print Icon   Print Part List
