Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2456 Agitator K Appelez-nous -
2 35-2062 Screw, Shoulder Type K Appelez-nous -
3 WP22002933 Screw   (Replaces: 25-7914) K Special Order $ 6.91

4 33-6241 Cap K Appelez-nous -
5 33-8959 Gasket K Appelez-nous -
6 35-2061 Gasket, Tub To Housing K Appelez-nous -
7 33-8799 Reinf Plate K Appelez-nous -
8 25-7783 Screw K Appelez-nous -
9 35-2328 Seal, Tub Top K Special Order $ 49.43

10 25-7330 Rubber Washer K Appelez-nous -
11 35-2508 Basket White K Appelez-nous -
12 35-2529 Tub Support K Appelez-nous -
13 35-2038 Tub K Appelez-nous -
14 35-2034 Top, Tub K Appelez-nous -
14 35-2262 Shield, Tub Top K Appelez-nous -
15 35-2550 Dispenser, Rinse K Appelez-nous -
16 25-7921 Steel Washer K Appelez-nous -
17 25-7922 Cork Washer K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

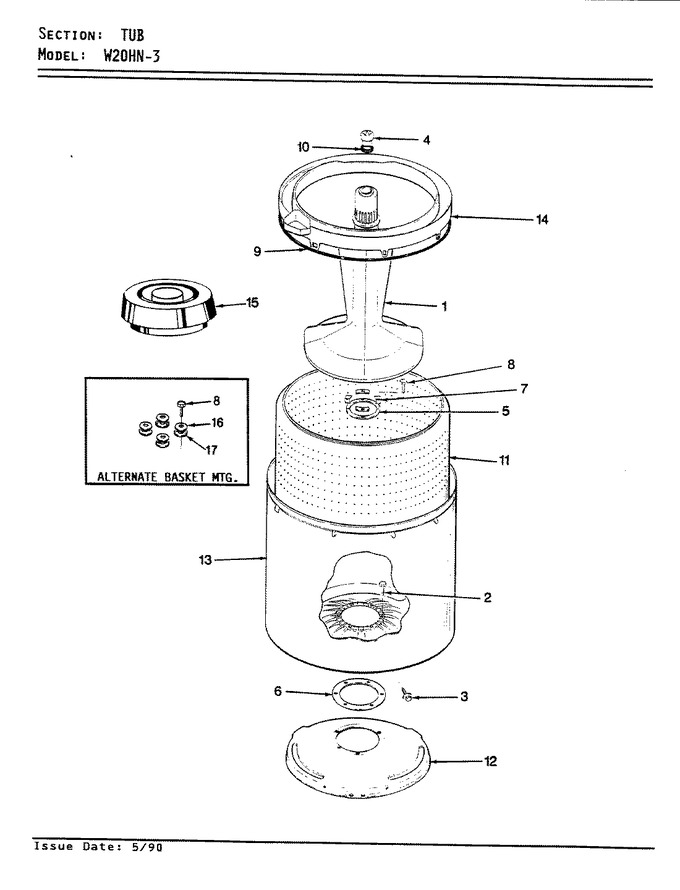

Diagram for W20HY3
