Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-0235 Spring, Motor Pivot A Appelez-nous -
2 35-2030 Motor A Appelez-nous -
2 LA-2002 Motor Kit A Appelez-nous -
3 33-9945 Slide, Foot A Appelez-nous -
4 WP308544 Screw Purchase   (Replaces: 25-7418) A In-Stock Immediately $ 6.98

5 25-7833 Screw A Appelez-nous -
6 25-7834 Washer A Appelez-nous -
7 33-9946 Isolator, Motor A Special Order $ 32.40

8 33-9944 Washer A Appelez-nous -
9 35-2810 Plate, Motor A Appelez-nous -
10 WP35-3646 Isolator, Motor Plate   (Replaces: 33-9941) A Special Order $ 6.69

11 25-7831 Spacer A Special Order $ 8.04

12 W10143344 Pulley, Motor (60hz)   (Replaces: 35-2124) A Special Order $ 112.73

13 25-7117 Set Screw A Appelez-nous -
14 33-9943 Motor Slide A Appelez-nous -
15 33-9967 Washer, Motor Isolator A Special Order $ 5.27

16 25-7047 Washer, Flat A Special Order $ 30.39

17 WPY707702 Nut, Motor Plate Asy To Motor   (Replaces: 25-7325) A In-Stock Immediately $ 6.26

18 35-3658 Spring, Suspension E Appelez-nous -
18 35-2681 Spring, Suspension A Appelez-nous -
19 35-2976 Hook, Suspension Spring A Appelez-nous -
20 35-2049 Bar, Stabilizer (with Guide) A Appelez-nous -
21 35-2046 Bracket, Stabilizer A Special Order $ 39.94

22 35-2052 Pin, Stabilizer A Special Order $ 6.02

23 WP22004469 Foot, Self Stabilizer   (Replaces: 35-2050) A Special Order $ 14.52

24 WP489483 Screw, No.10 Torq Limiting   (Replaces: 25-7828) A Special Order $ 9.78

24 WP22004469 Foot Pad Assy. (rear)   (Replaces: 35-3020) A Special Order $ 14.52

25 35-2984 Base A Appelez-nous -
26 25-7838 Speednut A Appelez-nous -
27 25-7915 Hex Nut A Appelez-nous -
28 35-0837 Pad, Front Foot A Appelez-nous -
28 35-0772 Foot, Front A Appelez-nous -
29 Y25-7951 Washer, Suspension Hook A Appelez-nous -
30 WP21352320 Belt, Drive Pulley   (Replaces: 35-2320) A In-Stock Immediately $ 19.29

31 25-7830 Spacer A Special Order $ 8.39

32 33-9765 Switch, Motor A Appelez-nous -
33 35-2065 Pad, Motor Plate A Appelez-nous -
34 WP21002026 Snubber   (Replaces: 35-2357) A In-Stock Immediately $ 9.68


    View Diagram in Separate Window     Print Icon   Print Part List

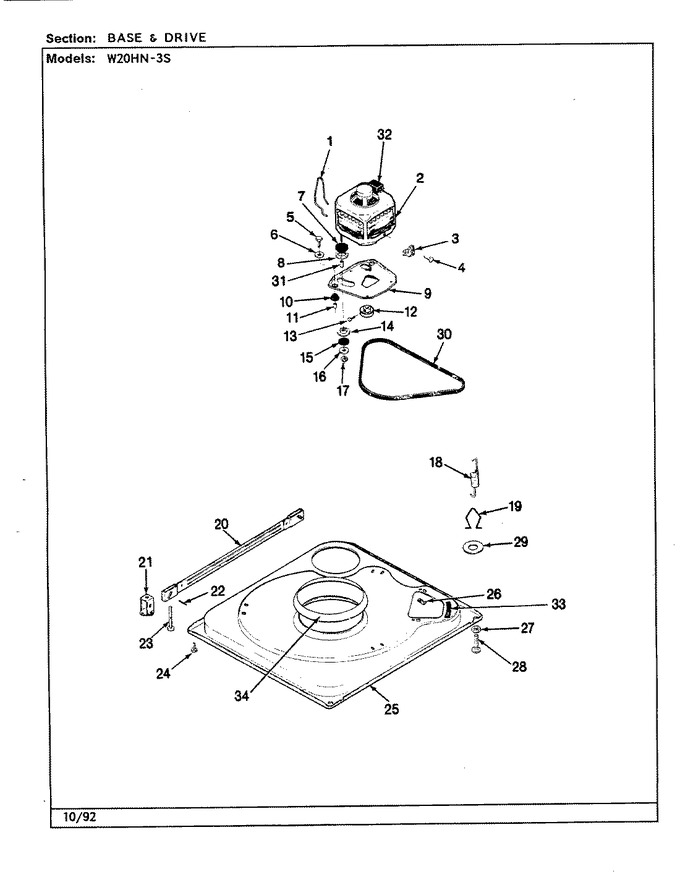

Diagram for W20HY3S
