Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
1 25-7793 Screw Appelez-nous -
1 35-2850 Control Panel Appelez-nous -
2 35-2487 Cap, End (rt) Appelez-nous -
2 35-2488 Cap, End (lt) Appelez-nous -
3 34-9487 Plate, Reinforcement Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 25-7697 Screw Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

5 53-0277 Trim, End Cap (rt) Appelez-nous -
5 53-0278 Trim, End Cap (lt) Appelez-nous -
6 25-7760 Screw Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
9 53-1676 Shield, Control Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 35-2688 Shield, Control Panel (rear) Appelez-nous -
10 25-7853 Retaining Ring Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

11 35-2845 Timer Special Order $ 197.98

12 25-0205 Screw Appelez-nous -
13 35-2254 Skirt & Ring Assy Appelez-nous -
14 35-2486 Timer Knob Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

15 35-2838 Switch Appelez-nous -
16 35-2185 Knob, Selector (blk) Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

17 35-2619 Switch 4pos Speed Appelez-nous -
18 35-2871 Manual, Use & Care Appelez-nous -
18 WP21001554 Switch Pressure   (Replaces: 35-2801) Special Order $ 143.59


    View Diagram in Separate Window     Print Icon   Print Part List

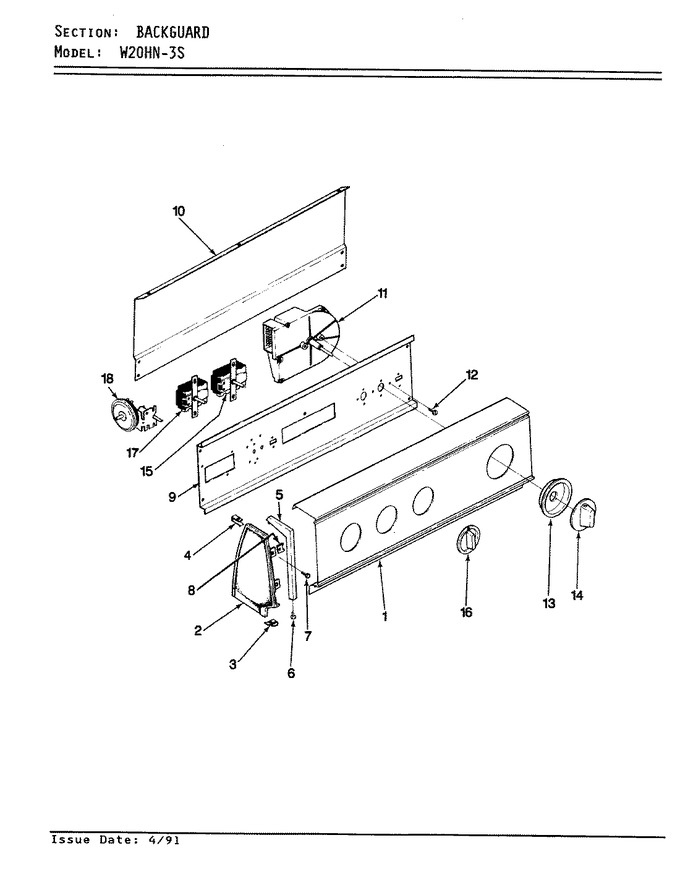

Diagram for W20HY3S
