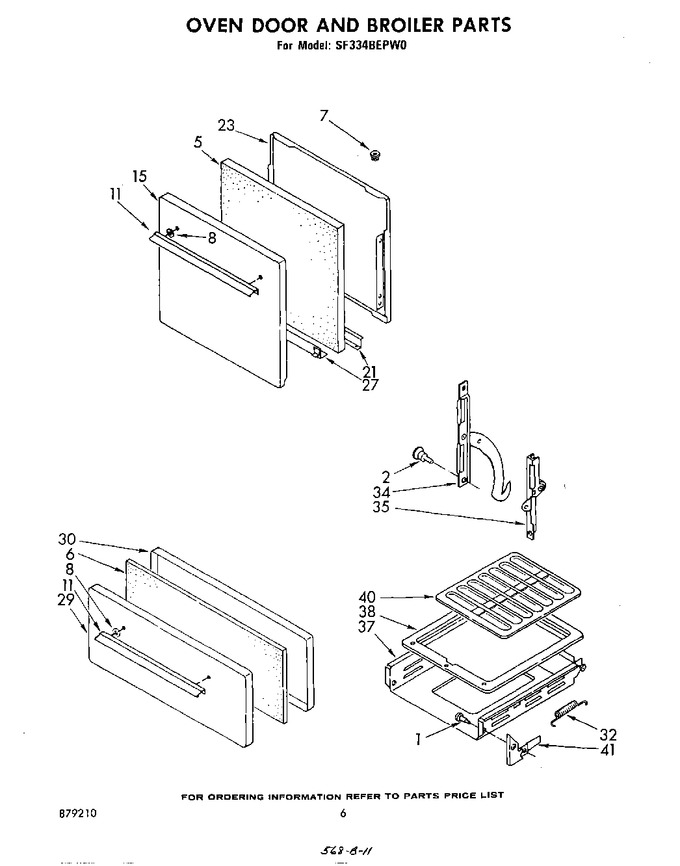

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878079		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
2	878302		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
5	WPW10208653		Insulation, Oven Door   (Replaces: 878089)			Immediately	$ 49.92
6	878090		Insulation, Broiler Door		Appelez-nous	-
7	878095		Nut, Expansion		Appelez-nous	-
8	878097		Spacer, Door Handle (2)		Appelez-nous	-
11	878728		Handle, Door (2)		Appelez-nous	-
15	879084		Panel, Oven Door (platinum)		Appelez-nous	-
15	878691		Panel, Oven Door (white)		Appelez-nous	-
15	878689		Panel, Oven Door (almond)		Appelez-nous	-
15	879083		Panel, Oven Door (toast)		Appelez-nous	-
21	878472		Strip, Door Seal		Appelez-nous	-
23	879190		Lining, Oven Door		Appelez-nous	-
27	878146		Retainer, Insulation		Appelez-nous	-
29	878148		Panel, Broiler Door (almond)		Appelez-nous	-
29	878147		Panel, Broiler Door (white)		Appelez-nous	-
29	879085		Panel, Broiler Door (toast)		Appelez-nous	-
29	879086		Panel, Broiler Door (platinum)		Appelez-nous	-
30	878149		Lining, Broiler Door		Appelez-nous	-
32	878165		Spring, Broiler Door (2)		Appelez-nous	-
34	878358		Hinge, Oven Door (2)		Appelez-nous	-
35	878105		Support, Oven Door Hinge (right Side)		Appelez-nous	-
35	878104		Support, Oven Door Hinge (left Side)		Appelez-nous	-
37	878172		Drawer, Broiler		Appelez-nous	-
38	878173		Pan, Broiler		Appelez-nous	-
40	878174		Tray, Broiler Pan		Appelez-nous	-
41	878184		Hinge, Broiler Door (right Side)		Appelez-nous	-
41	878183		Hinge, Broiler Door (left Side)		Appelez-nous	-
