SELECT A DIAGRAM

02 - Oven , Lit/optional


03 - Manifold


04 - Oven Door And Broiler


05 - Backguard


06 - Cook Top

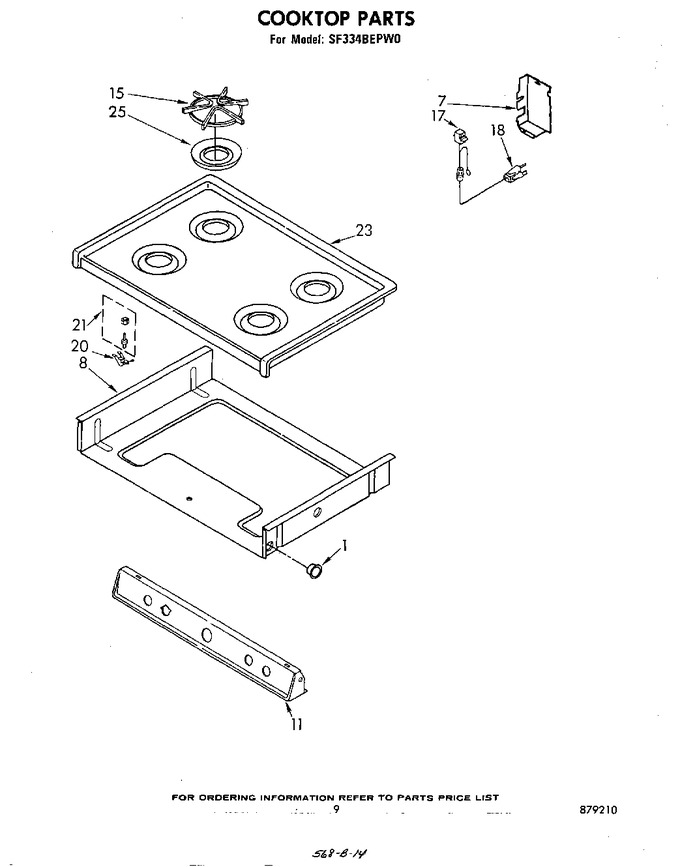

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878364		Bushing, Snap (3)		Appelez-nous	-
7	878458		Cover, Wire		Appelez-nous	-
8	878695		Bottom, Burner Box		Appelez-nous	-
11	878687		Panel, Manifold (white)		Appelez-nous	-
11	879090		Panel, Manifold (platinum)		Appelez-nous	-
11	879089		Panel, Manifold (toast)		Appelez-nous	-
11	878685		Panel, Manifold (almond)		Appelez-nous	-
15	878940		Grate, Burner		Appelez-nous	-
17	878162		Block, Disconnect Socket		Appelez-nous	-
18	878298		Cord, Extension		Appelez-nous	-
20	878164		Catch, Main Top (2)		Appelez-nous	-
21	878499		Strike, Main Top (2)		Appelez-nous	-
23	878177		Top, Main (almond)		Appelez-nous	-
23	878176		Top, Main (white)		Appelez-nous	-
23	879091		Top, Main (toast)		Appelez-nous	-
23	879092		Top, Main (platinum)		Appelez-nous	-
25	878914		Bowl, Drip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
