Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2847 Control Panel Appelez-nous -
2 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
2 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

3 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
3 25-7697 Screw Appelez-nous -
3 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 35-2669 Cap, End (lt)(wht) Appelez-nous -
3 35-2668 Cap, End (rt)(wht) Appelez-nous -
3 34-9487 Plate, Reinforcement Appelez-nous -
3 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

3 25-7649 Screw Appelez-nous -
4 53-0277 Trim, End Cap (rt) Appelez-nous -
4 53-0278 Trim, End Cap (lt) Appelez-nous -
4 25-7760 Screw Appelez-nous -
5 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
5 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

6 35-2680 Control Shield Appelez-nous -
7 35-2688 Shield, Control Panel (rear) Appelez-nous -
7 25-7583 Plastic Nut Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

7 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

8 35-2845 Timer Special Order $ 197.98

9 25-0205 Screw Appelez-nous -
10 35-2671 Skirt Assy Appelez-nous -
11 35-2672 Timer Knob Appelez-nous -
12 35-2837 Switch P.b. 8pos Appelez-nous -
13 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

13 33-6623 Bracket Appelez-nous -
14 35-0691-03 Signal Light Appelez-nous -
14 35-0691-04 Signal Light Appelez-nous -
14 35-0691-01 Signal Light Appelez-nous -
14 35-0691-08 Light - Cold/rinse Appelez-nous -
15 35-2656-09 Pushbutton - Mix Load Appelez-nous -
15 35-2656-10 Pushbutton - Staincleaner I Appelez-nous -
15 35-2656-11 Pushbutton Staincleaner Ii Appelez-nous -
15 35-2656-12 Pushbutton (whites) Appelez-nous -
15 35-2656-13 Pushbutton (colorfast) Appelez-nous -
15 35-2656-02 Pushbutton (non Color Fast) Appelez-nous -
15 53-1640-04 Pushbutton (delicate) Appelez-nous -
15 35-2656-03 Pushbutton (energy Saver) Appelez-nous -
16 35-2164 Lens Appelez-nous -
16 35-2655 Bezel - P.b. Appelez-nous -
16 25-7882 Palnut Appelez-nous -
16 35-0690 Lens Appelez-nous -
17 35-2257 Terminal Block Appelez-nous -
18 25-7649 Screw Appelez-nous -
19 WP21001554 Switch Pressure   (Replaces: 35-2801) Special Order $ 143.59

19 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

20 35-2676 Knob, Selector Appelez-nous -
22 33-6621 Bracket, Switch Appelez-nous -
23 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

23 25-7712 Screw Appelez-nous -
24 33-8541 Switch Pad Appelez-nous -
25 35-2873 Manual, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

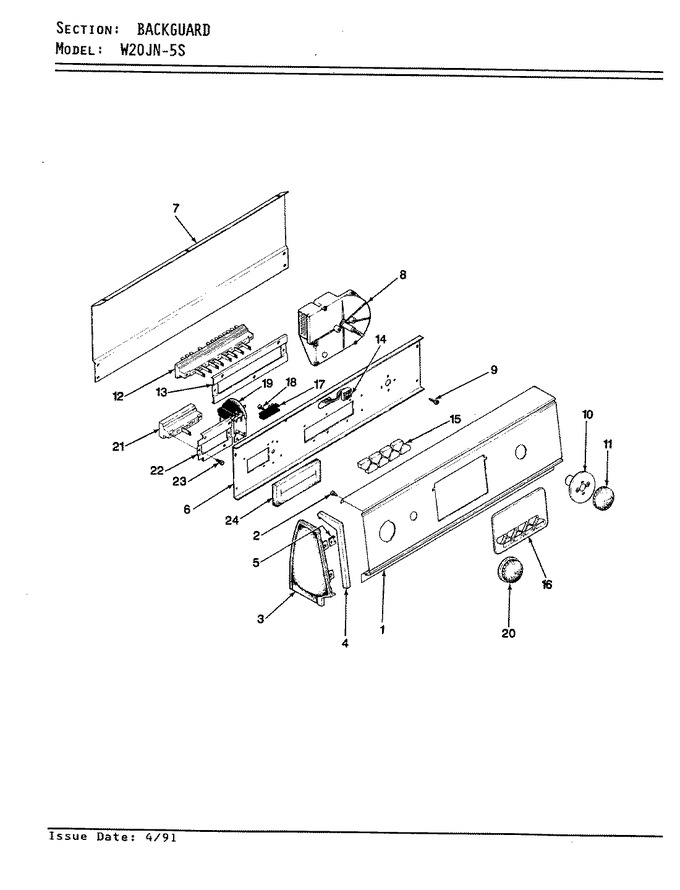

Diagram for W20JN5S
