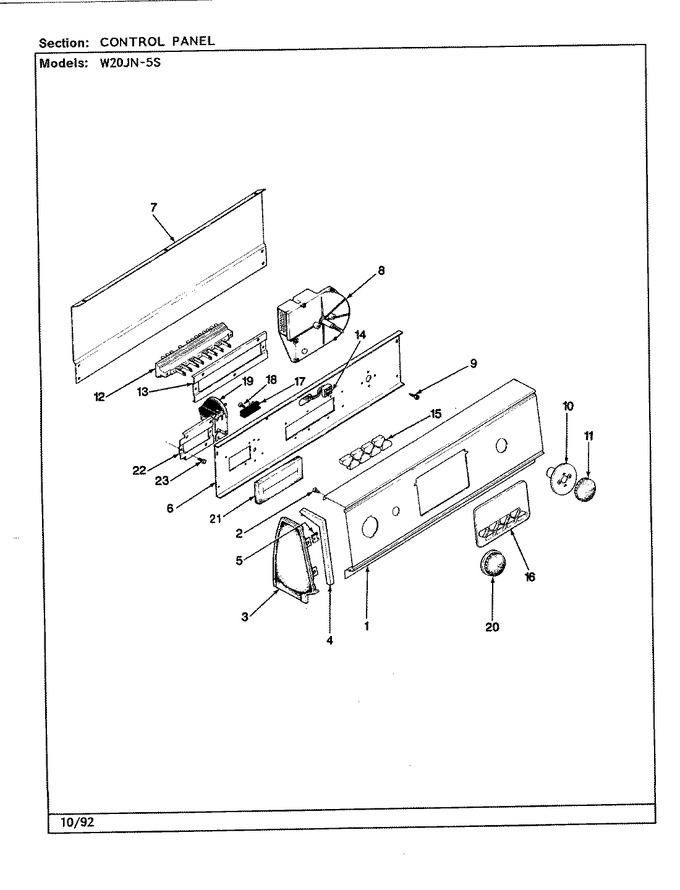

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-2847 | Control Panel | A |
|
- | ||||
| 2 | 25-7852 | Speedclip, Rr Shld To End Cap | A |
|
- | ||||
| 2 | WP33002917 | Screw (Replaces: 25-7435) | A |
|
Immediately | $ 6.90 | |||
| 3 | 25-7852 | Speedclip, Rr Shld To End Cap | A |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | A |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | A |
|
- | ||||
| 3 | 35-2669 | Cap, End (lt)(wht) | A |
|
- | ||||
| 3 | 35-2668 | Cap, End (rt)(wht) | A |
|
- | ||||
| 3 | 34-9487 | Plate, Reinforcement | A |
|
- | ||||
| 3 | WP33002917 | Screw (Replaces: 25-7435) | A |
|
Immediately | $ 6.90 | |||
| 3 | 25-7649 | Screw | A |
|
- | ||||
| 3 | 25-7697 | Screw | A |
|
- | ||||
| 4 | 25-7760 | Screw | A |
|
- | ||||
| 4 | 53-0277 | Trim, End Cap (rt) | A |
|
- | ||||
| 4 | 53-0278 | Trim, End Cap (lt) | A |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | A |
|
Immediately | $ 7.04 | |||
| 5 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | A |
|
- | ||||
| 6 | 35-2680 | Control Shield | A |
|
- | ||||
| 7 | WP12990527 | Screw, Sems (Replaces: 25-3457) | A |
|
Immediately | $ 7.15 | |||
| 7 | 25-7583 | Plastic Nut | A |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) | A |
|
Immediately | $ 7.04 | |||
| 7 | 35-2688 | Shield, Control Panel (rear) | A |
|
- | ||||
| 8 | 35-2845 | Timer | A |
|
$ 197.98 | ||||
| 9 | 25-0205 | Screw | A |
|
- | ||||
| 10 | 35-2671 | Skirt Assy | A |
|
- | ||||
| 11 | 35-2672 | Timer Knob | A |
|
- | ||||
| 12 | 35-2837 | Switch P.b. 8pos | A |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: 25-3092) | A |
|
Immediately | $ 7.04 | |||
| 13 | 33-6623 | Bracket | A |
|
- | ||||
| 14 | 35-0691-01 | Signal Light | A |
|
- | ||||
| 14 | 35-0691-08 | Light - Cold/rinse | A |
|
- | ||||
| 14 | 35-0691-03 | Signal Light | A |
|
- | ||||
| 14 | 35-0691-04 | Signal Light | A |
|
- | ||||
| 15 | 35-2656-09 | Pushbutton - Mix Load | A |
|
- | ||||
| 15 | 35-2656-10 | Pushbutton - Staincleaner I | A |
|
- | ||||
| 15 | 35-2656-11 | Pushbutton Staincleaner Ii | A |
|
- | ||||
| 15 | 35-2656-12 | Pushbutton (whites) | A |
|
- | ||||
| 15 | 35-2656-13 | Pushbutton (colorfast) | A |
|
- | ||||
| 15 | 35-2656-03 | Pushbutton (energy Saver) | A |
|
- | ||||
| 15 | 53-1640-04 | Pushbutton (delicate) | A |
|
- | ||||
| 15 | 35-2656-02 | Pushbutton (non Color Fast) | A |
|
- | ||||
| 16 | 35-2164 | Lens | A |
|
- | ||||
| 16 | 35-2655 | Bezel - P.b. | A |
|
- | ||||
| 16 | 25-7882 | Palnut | A |
|
- | ||||
| 16 | 35-0690 | Lens | A |
|
- | ||||
| 17 | 35-2257 | Terminal Block | A |
|
- | ||||
| 18 | 25-7649 | Screw | A |
|
- | ||||
| 19 | WP90767 | Screw (Replaces: 25-3092) | A |
|
Immediately | $ 7.04 | |||
| 19 | WP21001554 | Switch Pressure (Replaces: 35-2801) | A |
|
$ 143.59 | ||||
| 19 | WP21001554 | Switch, Pressure (Replaces: 35-3283) | B |
|
$ 143.59 | ||||
| 20 | 35-2676 | Knob, Selector | A |
|
- | ||||
| 21 | 33-8541 | Switch Pad | A |
|
- | ||||
| 25 | 16000329 | Guide, Quick Ref. - Magic Chef | A |
|
- | ||||
| 25 | 35-2873 | Manual, Use & Care | A |
|
- |
