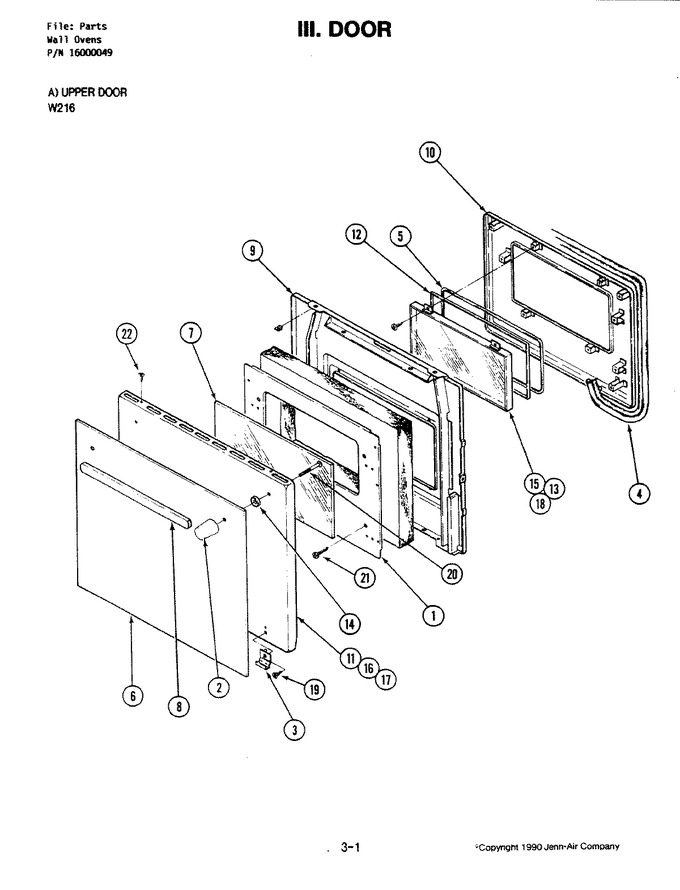

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Door (lower)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F131-51 | Baffle, Door | 01 |
|
- | ||||
| 1 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 01 |
|
$ 12.69 | ||||
| 2 | 7744P007-60 | End Cap, Handle (blk) | 01 |
|
- | ||||
| 3 | 3819F010-80 | Clip | 01 |
|
- | ||||
| 4 | 7201P004-60 | Gasket | 01 |
|
- | ||||
| 5 | 7201P020-60 | Gasket | 01 |
|
- | ||||
| 6 | 7902P258-60 | Glass, Door Screened | 01-05 |
|
- | ||||
| 6 | 7902P339-60 | Glass, Door Upper | 06 |
|
- | ||||
| 7 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 8 | 7701P071-60 | Handle, Door----na | 01 |
|
- | ||||
| 9 | 2402W130-15 | Lining Assembly | 01-06 |
|
- | ||||
| 9 | 2402W130-19 | Lining, Door | 07 |
|
- | ||||
| 10 | 2410W042-19 | Pad, Door | 07 |
|
- | ||||
| 10 | 2410W038-15 | Pad, Oven Door | 01 |
|
- | ||||
| 10 | 2410W042-15 | Pad Door | 02-06 |
|
- | ||||
| 11 | 2401F045-70 | Panel, Oven Door | 01-05 |
|
- | ||||
| 11 | 2401F103-70 | Panel, Door (blk) | 06 |
|
- | ||||
| 12 | 3804F021-45 | Retainer, Gasket | 01 |
|
- | ||||
| 13 | 7706P128-60 | Frame, Window | 01 |
|
- | ||||
| 14 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 15 | 7902P104-60 | Glass, Inner | 01 |
|
- | ||||
| 16 | 7208P001-60 | Seal, Glass | 01 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 18 | 7902P102-60 | Glass, Window Outer | 01 |
|
- | ||||
| 19 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 20 | 7101P232-60 | Screw | 01 |
|
- | ||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 22 | 7101P242-60 | Screw | 01 |
|
- |
