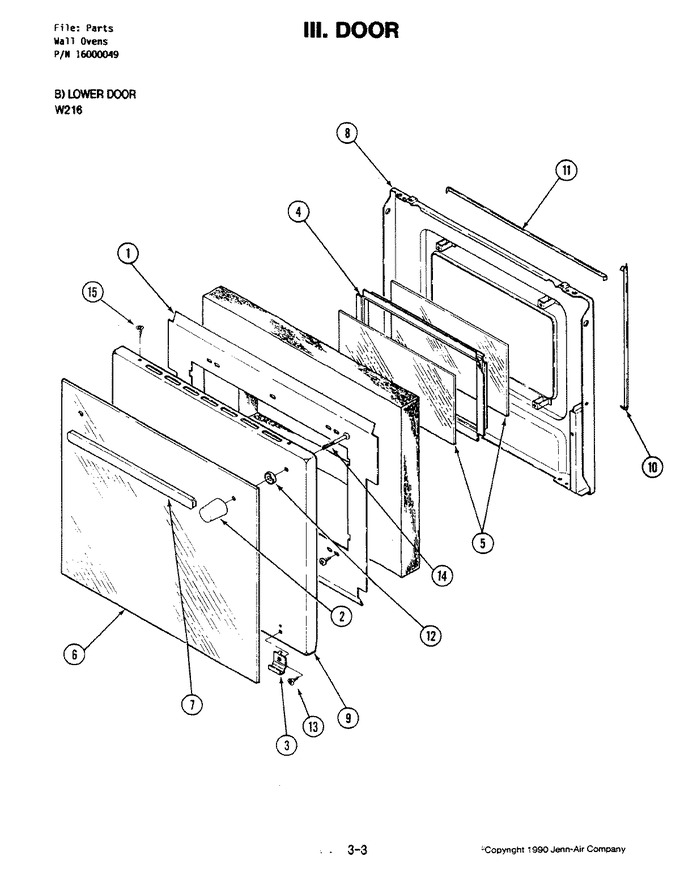

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Door (lower)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 7744P007-60 | End Cap, Handle (blk) | 01 |
|
- | ||||
| 3 | 3819F010-80 | Clip | 01 |
|
- | ||||
| 4 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 5 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 6 | 7902P257-60 | Glass, Door Screened | 01-05 |
|
- | ||||
| 6 | 7902P338-60 | Glass, Door Lower | 06 |
|
- | ||||
| 7 | 7701P071-60 | Handle, Door----na | 01 |
|
- | ||||
| 8 | 2402W132-19 | Lining, Door | 07 |
|
- | ||||
| 8 | 2402W132-15 | Lining Assembly | 01-06 |
|
- | ||||
| 9 | 2401F054-70 | Panel, Oven Door | 01-05 |
|
- | ||||
| 9 | 2401F104-70 | Panel, Door (blk) | 06 |
|
- | ||||
| 10 | 7212P007-60 | Seal, Door (vertical) | 01 |
|
$ 47.10 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 12 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 13 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 14 | 7101P232-60 | Screw | 01 |
|
- | ||||
| 15 | 7101P242-60 | Screw | 01 |
|
- |
