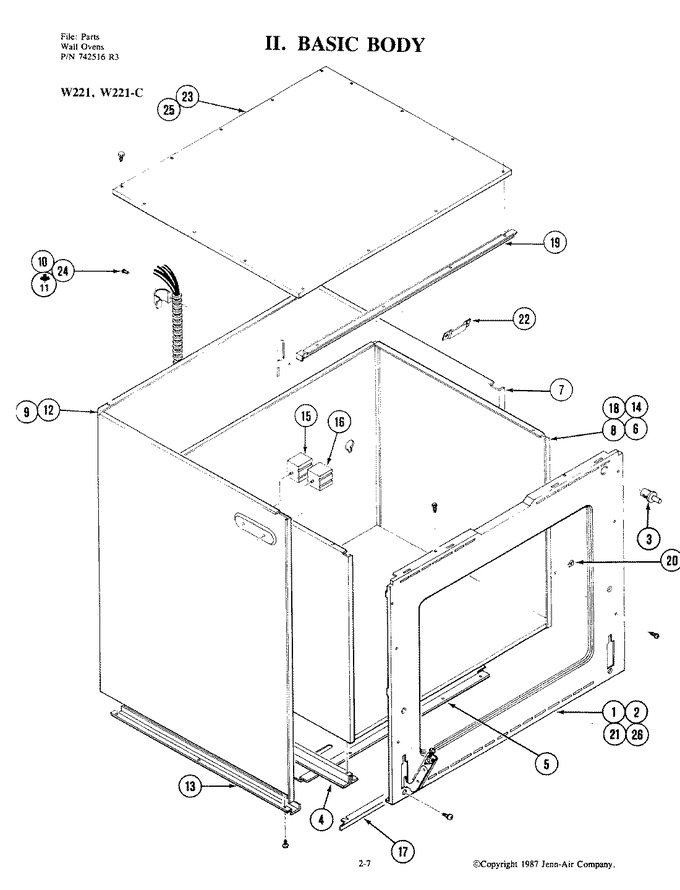

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701663		Closure, Front	1	Appelez-nous	-
2	701665		Hinge	1	Appelez-nous	-
3	701666		Switch, Door	1	Appelez-nous	-
4	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
5	701668		Panel, Bottom (outer)	1	Appelez-nous	-
6	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
7	701672		Panel, Outer (rt)	1	Appelez-nous	-
8	701676		Panel, Side (rt)	1	Appelez-nous	-
9	701691		Panel, Rear (outer)	1	Appelez-nous	-
10	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 131.01
11	701694		Cable, Wire	1	Appelez-nous	-
11	DE81-08029A		Harness, Main   (Replaces: 701693)	1			$ 132.75
12	701695		Panel, Outer (lt)	1	Appelez-nous	-
13	700596		Rail, Bottom	1	Appelez-nous	-
14	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
15	701698		Switch, Broil Cycle	1	Appelez-nous	-
16	W11233072		Screw   (Replaces: 701638)	1		Immediately	$ 12.62
16	701699		Switch, Bake Cycle	1	Appelez-nous	-
17	701848		Trim, Oven (lower)	1	Appelez-nous	-
18	701700		Panel, Back	1	Appelez-nous	-
18	701701		Angle, Oven Support	1	Appelez-nous	-
18	701703		Insulation, Rear	1	Appelez-nous	-
18	701702		Insulation, Wrap	1	Appelez-nous	-
19	701705		Support, Top	1	Appelez-nous	-
20	Y700556		Clip, J	1	Appelez-nous	-
21	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
22	701680		Bracket, Vent Tube	1	Appelez-nous	-
23	701681		Top (outer)	1	Appelez-nous	-
24	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 6.85
25	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
26	701774		Circuit Breaker (15 Amp)	1	Appelez-nous	-
26	701704		Outlet, Appliance	1	Appelez-nous	-
26	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
