SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Convection Fan
04 - Cooling Fan
05 - Door

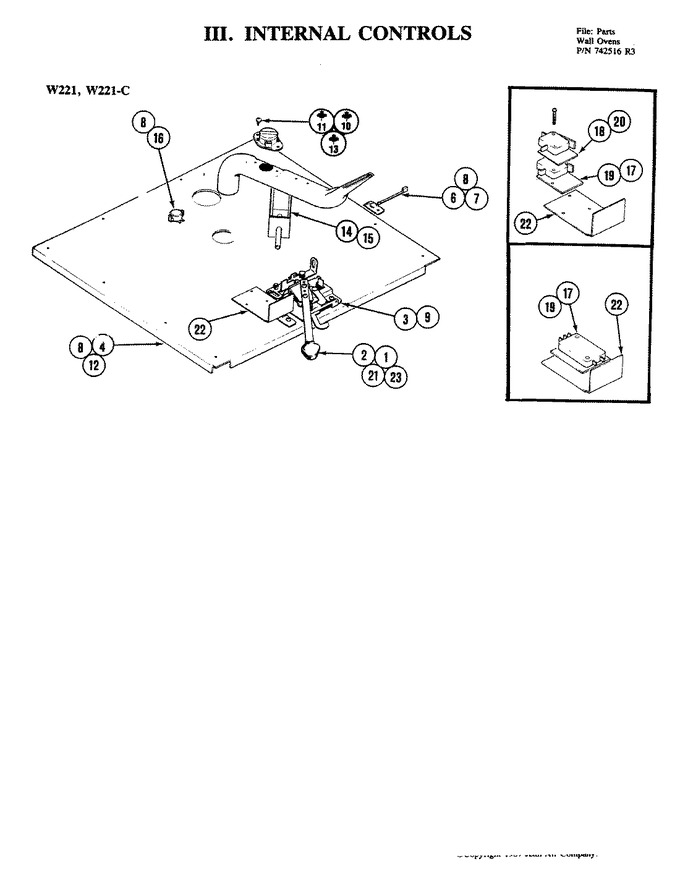

06 - Internal Controls
07 - Microwave (m140)
08 - Oven
09 - Trim
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 2 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 3 | 701673 | Latch | 1 |
|
- | ||||
| 4 | 701674 | Panel, Inner | 1 |
|
- | ||||
| 5 | 701677 | Screw | 1 |
|
- | ||||
| 6 | WPW10339879 | Tie, Cable (Replaces: 701678) | 1 |
|
$ 7.11 | ||||
| 7 | 701679 | Tie, Mount Cable | 1 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 9 | 701675 | Ring, Retaining | 1 |
|
- | ||||
| 10 | 702728 | Harness, Wire | 1 |
|
- | ||||
| 10 | Y702107 | Limit, Oven | 1 |
|
- | ||||
| 10 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 11 | WP355214 | Screw (Replaces: Y700725) | 1 |
|
Immediately | $ 7.26 | |||
| 12 | 701683 | Bracket, Hat (rear) | 1 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 13 | 701684 | Tube, Vent | 1 |
|
- | ||||
| 14 | 701685 | Solenoid | 1 |
|
- | ||||
| 14 | 701688 | Cable, Solenoid | 1 |
|
- | ||||
| 15 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 16 | 701687 | Thermostat | 1 |
|
- | ||||
| 16 | WP74004005 | Screw (Replaces: Y700929) | 1 |
|
$ 6.95 | ||||
| 17 | 701689 | Switch, Door Latch | 1 |
|
- | ||||
| 18 | Y701690 | Lever, Latch | 1 |
|
- | ||||
| 19 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 20 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 21 | 712086 | Insulator, Switch | 1 |
|
- | ||||
| 22 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 23 | 707407 | Screw | 1 |
|
$ 6.42 |
