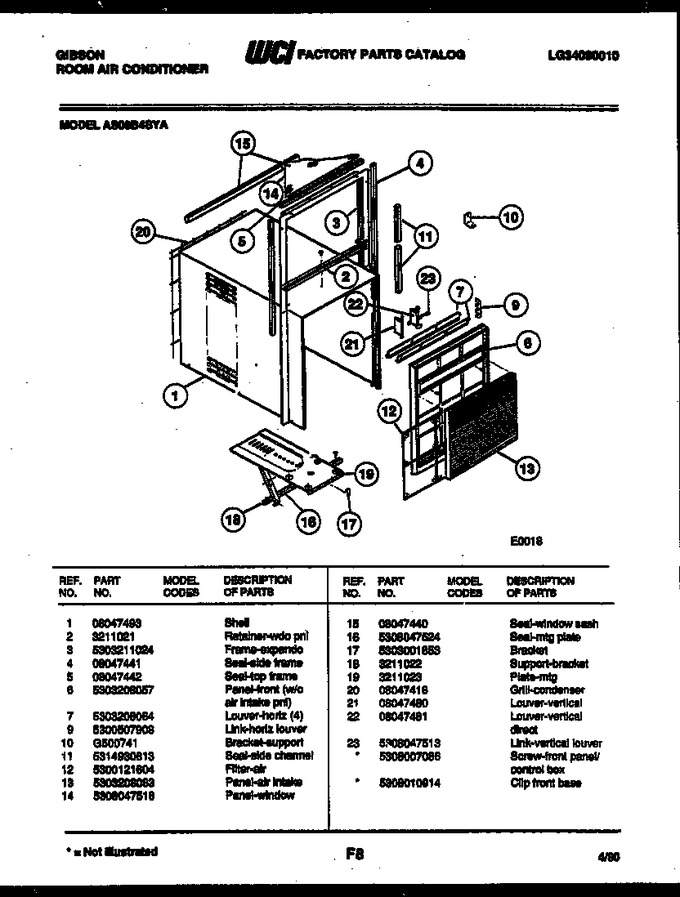

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical And Air Handling Parts
04 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08047493 | Shell |
|
- | |||||
| 2 | 3211021 | Retainer-wdo Pnl |
|
- | |||||
| 3 | 5303211024 | Frame-expando |
|
- | |||||
| 4 | 08047441 | Seal-side Frame |
|
- | |||||
| 5 | 08047442 | Seal-top Frame |
|
- | |||||
| 6 | 5303208057 | Panel-front (w/o Air Intake Pnl) |
|
- | |||||
| 7 | 5303208064 | Louver-horiz. (4) |
|
- | |||||
| 9 | 5300507908 | Link-horiz Louver |
|
- | |||||
| 10 | G500741 | Bracket-support |
|
- | |||||
| 11 | 5314930813 | Seal-side Channel |
|
- | |||||
| 12 | 5300121604 | Filter-air |
|
- | |||||
| 13 | 5303208083 | Panel-air Intake |
|
- | |||||
| 14 | 5308047516 | Panel-window |
|
- | |||||
| 15 | 08047440 | Seal-window Sash |
|
- | |||||
| 16 | 5308047524 | Seal-mtg Plate |
|
- | |||||
| 17 | 5303001853 | Bracket |
|
- | |||||
| 18 | 3211022 | Support Bracket |
|
- | |||||
| 19 | 3211023 | Plate-mtg |
|
- | |||||
| 20 | 08047416 | Grill-condenser |
|
- | |||||
| 21 | 08047480 | Louver-vertical |
|
- | |||||
| 22 | 08047481 | Louver-vertical Direct |
|
- | |||||
| 23 | 5308047513 | Link-vertical Louver |
|
- | |||||
| *25315 | 5308007086 | Screw-front Panel/control Box |
|
- | |||||
| *25315 | 5308010914 | Clip-front/base |
|
- |
