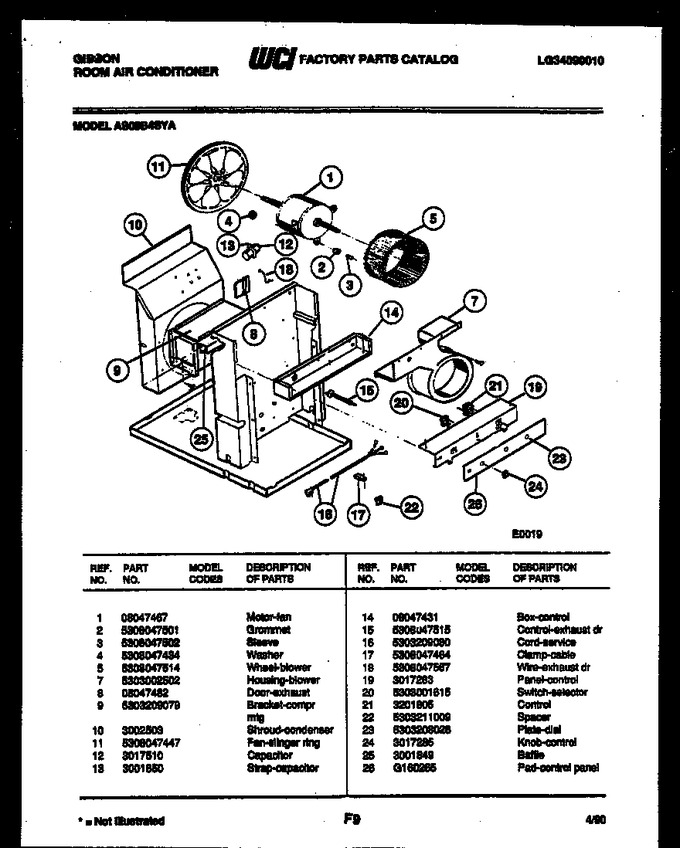

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical And Air Handling Parts
04 - System Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08047467 | Motor - Fan |
|
- | |||||
| 2 | 5308047501 | Grommet |
|
- | |||||
| 3 | 5308047502 | Sleeve |
|
- | |||||
| 4 | 5308047434 | Washer |
|
- | |||||
| 5 | 5308047514 | Wheel-blower |
|
- | |||||
| 7 | 5303002502 | Housing-blower |
|
- | |||||
| 8 | 08047482 | Door - Exhaust |
|
- | |||||
| 9 | 5303209079 | Bracket-compr Mtg |
|
- | |||||
| 10 | 3002503 | Shroud - Condenser |
|
- | |||||
| 11 | 5308047447 | Fan-slinger Ring |
|
- | |||||
| 12 | 3017510 | Capacitor |
|
- | |||||
| 13 | 3001850 | Strap-capacitor |
|
- | |||||
| 14 | 08047431 | Box - Control |
|
- | |||||
| 15 | 5308047515 | Control-exhaust Dr |
|
- | |||||
| 16 | 5303209080 | Cord-service |
|
- | |||||
| 17 | 5308047464 | Clamp-cable |
|
- | |||||
| 18 | 5308047557 | Wire-exhaust Dr |
|
- | |||||
| 19 | 3017283 | Panel - Control |
|
- | |||||
| 20 | 5303001615 | Switch-selector |
|
- | |||||
| 21 | 3201805 | Control |
|
- | |||||
| 22 | 5303211009 | Spacer |
|
- | |||||
| 23 | 5303208026 | Plate-dial |
|
- | |||||
| 24 | 3017285 | Knob-control |
|
- | |||||
| 25 | 3001849 | Baffle |
|
- | |||||
| 26 | G160265 | Pad-control Panel |
|
- |
