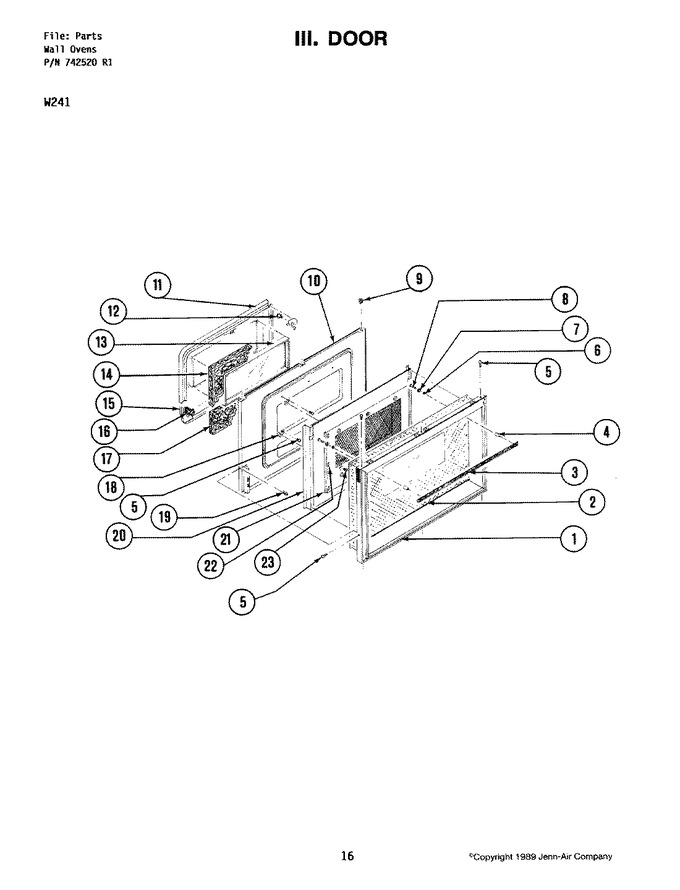

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Fans (convection)


05 - Fans (cooling)


06 - Internal Control


07 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702774		Frame	1	Appelez-nous	-
2	Y705069		Glass, Screened	2	Appelez-nous	-
2	701642		Glass, Screened	1	Appelez-nous	-
3	702930		Handle----na	1	Appelez-nous	-
4	701832		Post, Mounting	1	Appelez-nous	-
5	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
5	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
6	715939		Bushing	1	Appelez-nous	-
7	Y700446		Washer	1			$ 5.27
8	Y703533		Screw	1	Appelez-nous	-
9	701643		Nut, Push In	1	Appelez-nous	-
10	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
10	Y703449		Washer	2	Appelez-nous	-
10	715870		Screw	2	Appelez-nous	-
10	701647		Liner, Door	1	Appelez-nous	-
10	712188		Liner, Door	2	Appelez-nous	-
11	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
12	Y700503		Clip, Retainer	1	Appelez-nous	-
13	DE81-10263A		Latch Plate (upper)   (Replaces: 702041)	1			$ 396.77
13	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
13	701648		Window Pack	1	Appelez-nous	-
14	701658		Insulation, Bottom	1	Appelez-nous	-
15	712209		Plug, Upper	1	Appelez-nous	-
16	701660		Insulation, Top	1	Appelez-nous	-
17	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
18	701652		Bracket, Stand-off	1	Appelez-nous	-
19	Y700834		Clip	1	Appelez-nous	-
20	11034884		Baffle, Door   (Replaces: 701645)	1			$ 93.30
21	701644		Panel, Perforated	1	Appelez-nous	-
22	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
23	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
23	701149		Locktite (handle)	1	Appelez-nous	-
