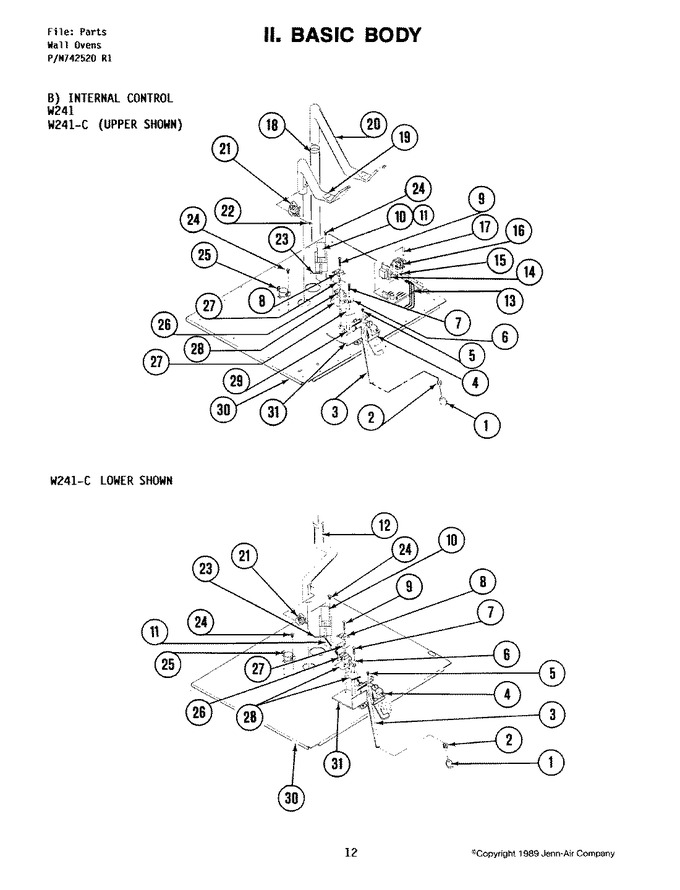

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Fans (convection)
05 - Fans (cooling)
06 - Internal Control
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 2 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 3 | Y701690 | Lever, Latch | 1 |
|
- | ||||
| 4 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 5 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 6 | Y703351 | Switch, Latch-top Front | 1 |
|
- | ||||
| 6 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 7 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 7 | 702807 | Screw | 1 |
|
- | ||||
| 8 | 702806 | Switch, Door | 1 |
|
- | ||||
| 9 | 702807 | Screw | 1 |
|
- | ||||
| 10 | Y702526 | Solenoid | 5 |
|
- | ||||
| 10 | 701685 | Solenoid | 1 |
|
- | ||||
| 11 | 703301 | Cable, Wire | 1 |
|
- | ||||
| 12 | 703069 | Tube, Vent (lower Oven) | 1 |
|
- | ||||
| 12 | 703380 | Tube, Vent-lower | 1 |
|
- | ||||
| 13 | 700893 | Support, P.c. Board | 1 |
|
- | ||||
| 13 | DE81-04410A | Module, Temp Control (Replaces: 703091) | 1 |
|
$ 416.74 | ||||
| 14 | 701629 | Transformer | 1 |
|
- | ||||
| 15 | Y700584 | Screw | 1 |
|
- | ||||
| 16 | Y703274 | Relay | 1 |
|
- | ||||
| 17 | 701630 | Bracket, Mount | 1 |
|
- | ||||
| 18 | 703068 | Tube, Vent-rear | 1 |
|
- | ||||
| 19 | 703381 | Tube, Vent-top Offset | 1 |
|
- | ||||
| 20 | 703067 | Tube, Vent-top (upper) | 1 |
|
- | ||||
| 21 | Y702727 | Limit, Oven | 1 |
|
- | ||||
| 21 | 702993 | Limit, Oven | 1 |
|
- | ||||
| 22 | 712124 | Screw | 1 |
|
- | ||||
| 22 | WP355214 | Screw (Replaces: Y700725) | 1 |
|
Immediately | $ 7.26 | |||
| 23 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 24 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 25 | 701687 | Thermostat | 1 |
|
- | ||||
| 25 | 703259 | Limit, Thermostat | 1 |
|
- | ||||
| 26 | 702805 | Switch, Door | 1 |
|
- | ||||
| 27 | 703264 | Insulator | 1 |
|
- | ||||
| 28 | Y702350 | Insulator | 1 |
|
- | ||||
| 29 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 30 | 701674 | Panel, Inner | 1 |
|
- | ||||
| 31 | 703085 | Harness, Wire-lower | 1 |
|
- | ||||
| 31 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 31 | 703087 | Wire, Gray | 1 |
|
- | ||||
| 31 | 703384 | Harness, Wire-lower | 1 |
|
- | ||||
| 31 | 00703385 | Wire, Gray (Replaces: 703385) | 1 |
|
$ 71.53 | ||||
| 31 | 703386 | Wire, Yellow | 1 |
|
- |
