01 - Blower Motor (convection Fan Upper)
02 - Blower Motor (cooling Fan)
03 - Body
04 - Control Panel
05 - Door
06 - Internal Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

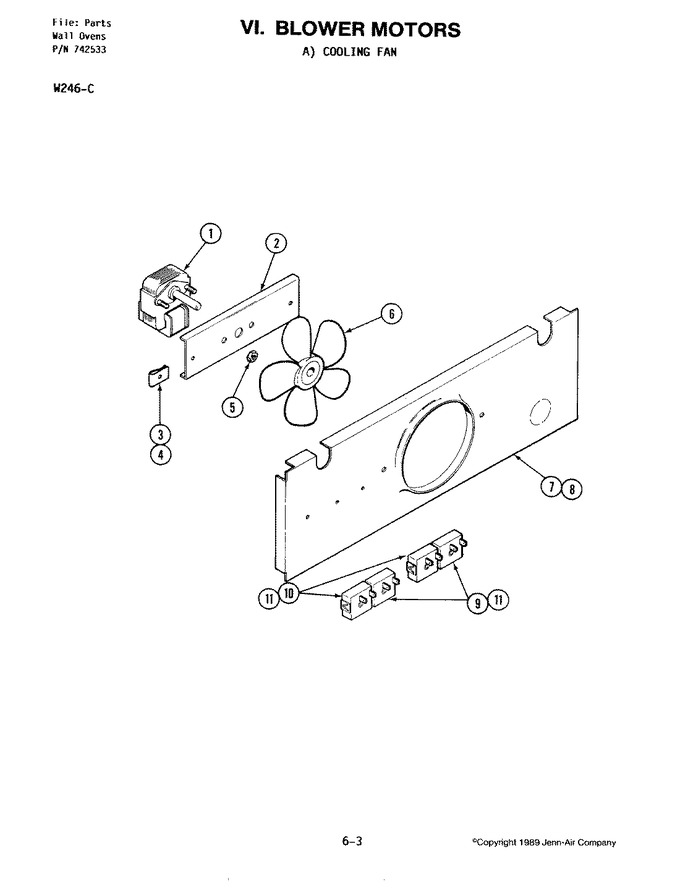

| 1 | Y701721 | Motor, Fan | 11 |
|
- | ||||
| 2 | Y703570 | Mount, Motor | 11 |
|
- | ||||
| 3 | Y700556 | Clip, J | 11 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 5 | M0282005 | Nut,no.6-32 Hex (Replaces: Y707149) | 11 |
|
$ 7.07 | ||||
| 6 | 701718 | Blade, Fan | 11 |
|
- | ||||
| 7 | 703096 | Plate, Motor | 11 |
|
- | ||||
| 7 | 704336 | Plate, Motor | 11 |
|
- | ||||
| 8 | 712025 | Plenum, Upper | 11 |
|
- | ||||
| 9 | 704355 | Switch, Broil Cycle | 11 |
|
- | ||||
| 9 | 701698 | Switch, Broil Cycle | 11 |
|
- | ||||
| 10 | 703086 | Harness, Wire | 11 |
|
- | ||||
| 10 | 704354 | Switch, Bake Cycle | 11 |
|
- | ||||
| 10 | 701699 | Switch, Bake Cycle | 11 |
|
- | ||||
| 11 | 704335 | Screw | 11 |
|
- |
