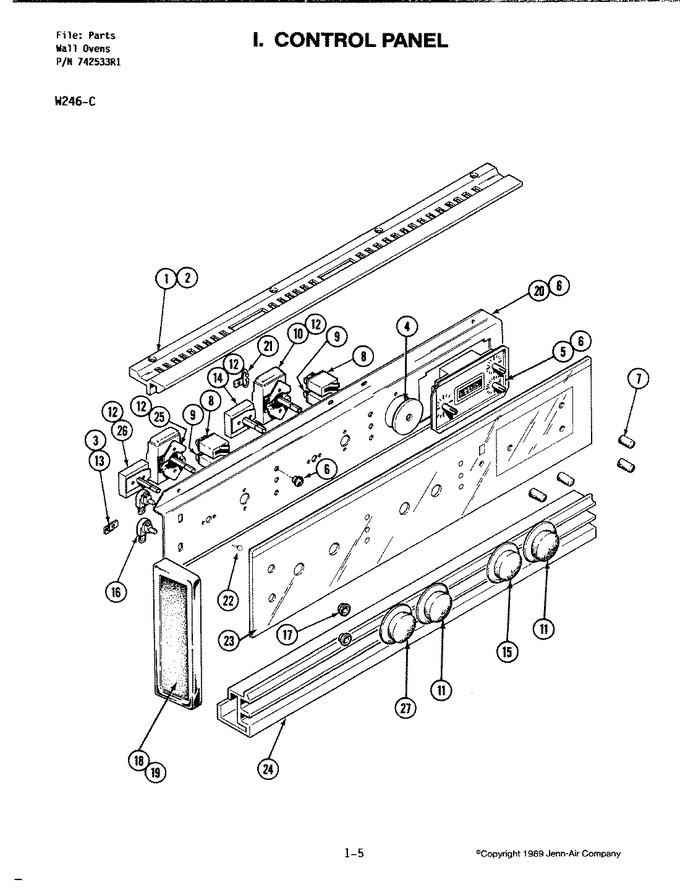

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704251		Extrusion, Top	11	Appelez-nous	-
2	704714		Screw, Trim	11	Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
4	DE81-04411A		Dial, Temp Control   (Replaces: 703094)	11			$ 320.99
5	704246		Clock	11	Appelez-nous	-
6	Y700630		Lens, Indicator Lights	11			$ 4.18
7	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	11			$ 12.13
8	Y702394		Light, Indicator 240v	11	Appelez-nous	-
9	Y702393		Light, Indicator-120v	11	Appelez-nous	-
10	703080		Thermostat-upper	11	Appelez-nous	-
11	703917		Knob, Thermostat	11			$ 21.34
12	71002058		Screw   (Replaces: Y702124)	11			$ 5.82
13	701609		Angle, Attachment	11	Appelez-nous	-
14	703077		Switch, Selector Upper	11	Appelez-nous	-
15	703901		Knob, Selector Switch (blk)	11	Appelez-nous	-
16	700558		Switch, Light (push)	11	Appelez-nous	-
17	704323		Bezel, Switch	11	Appelez-nous	-
18	704257		End Cap (lt-blk)	11	Appelez-nous	-
19	704258		End Cap (rt-blk)	11	Appelez-nous	-
20	705334		Panel, Control	11	Appelez-nous	-
21	702746		Tie, Mount Cable	11	Appelez-nous	-
22	705331		Pad, Spacer	11	Appelez-nous	-
23	704263		Glass, Control Panel	11	Appelez-nous	-
24	704250		Extrusion, Bottom	11	Appelez-nous	-
25	703082		Thermostat, Lower Oven	11	Appelez-nous	-
26	703078		Switch, Selector (upper)	11	Appelez-nous	-
27	703267		Wire, Resistor	11	Appelez-nous	-
27	703764		Harness, Oven (upr)	11	Appelez-nous	-
27	703086		Harness, Wire	11	Appelez-nous	-
27	703089		Wire, Tan	11	Appelez-nous	-
27	DE81-04412A		Wire, Pink   (Replaces: 703090)	11			$ 327.97
27	DE81-09159A		Wire, Wire   (Replaces: 703370)	11			$ 313.88
27	Y703911		Knob, Selector (blk)	11	Appelez-nous	-
